Reconvilier 11
Description

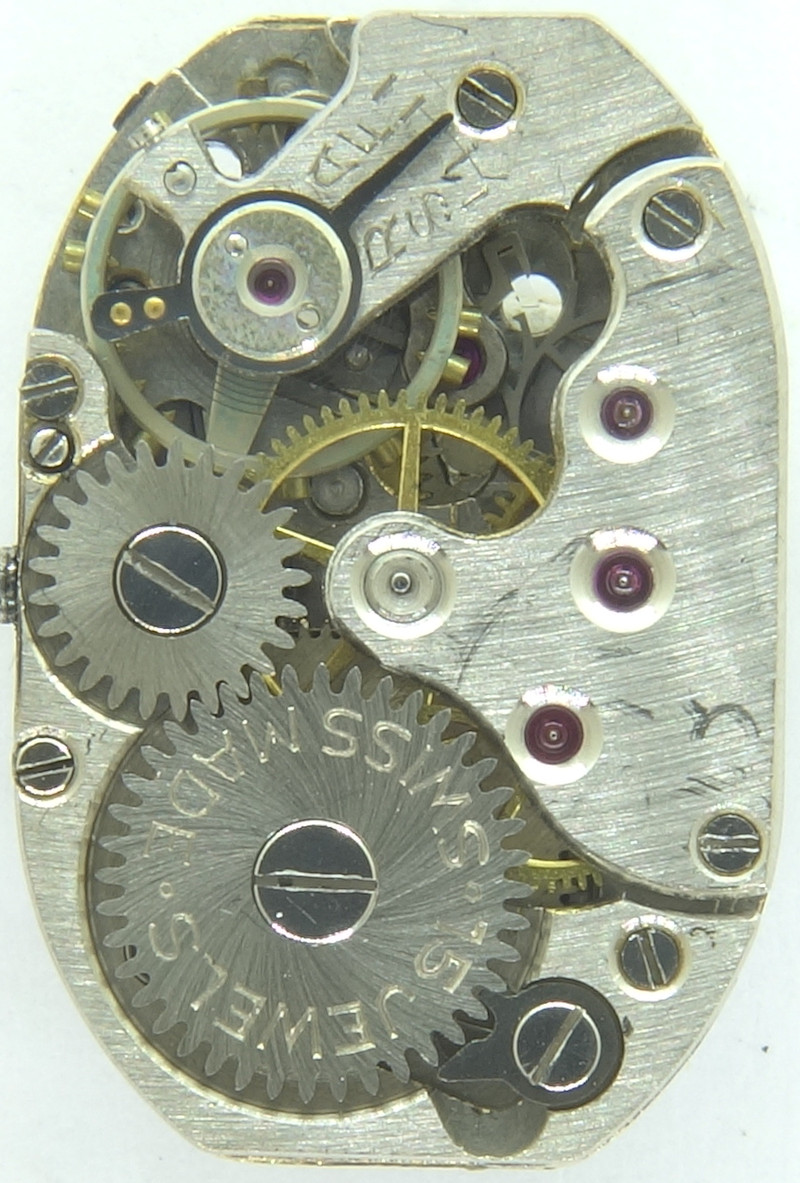

In the swiss Jura, there’s the village of Reconvilier, in which since 1853 until today (after a relaunch in 2006) watches and movements are made.
The Reconvilier 11 is one of the few calibers, which were made there.
It dates from the late 1940s and has got the popular tonneau shape with a width of only 5 1/4 lignes. Its slanted bridges and cocks make a pleasant impression.

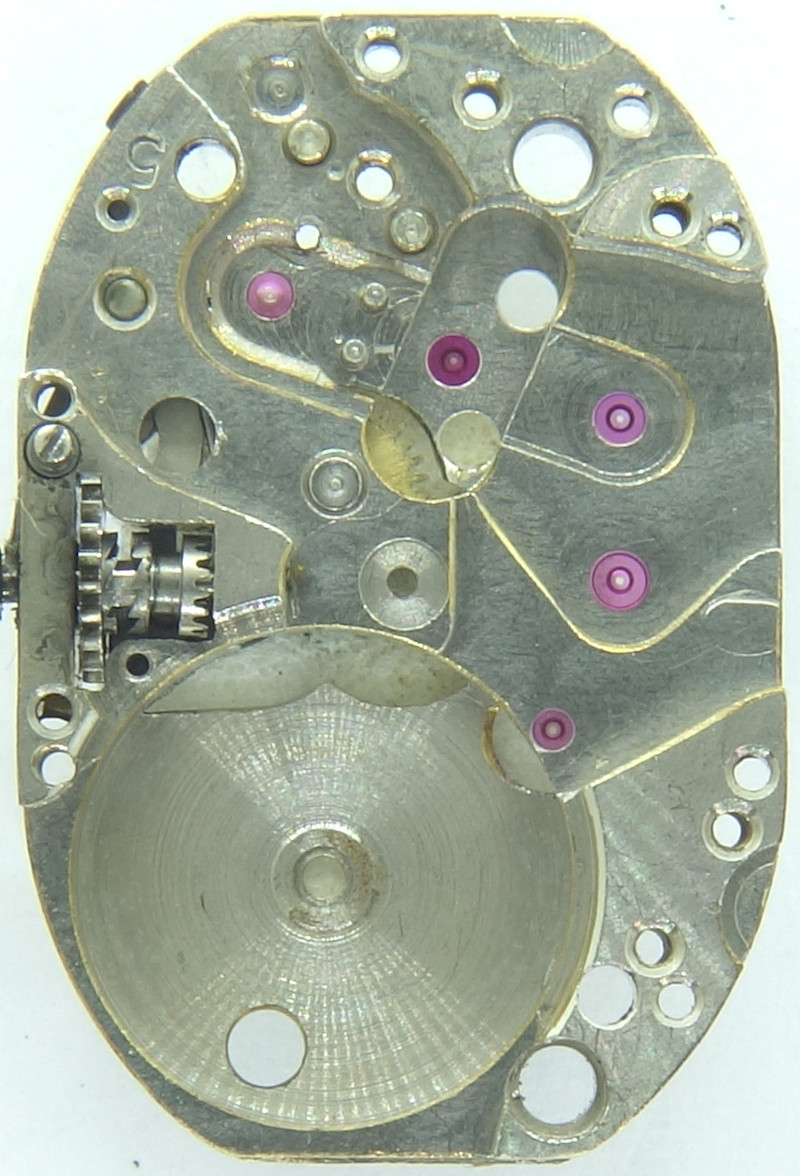

base plate
On the base plate, you see the good quality of this movement. All important bearings contain rubies, in total we have 15 jewels, which were common these days.
gear train
The filigree wheels are nice and make the classical gear train consisting of the directly driven minute wheel, third wheel, seconds wheel and escape wheel.
There’s a little oddity: The third wheel gear runs above the minute wheel.

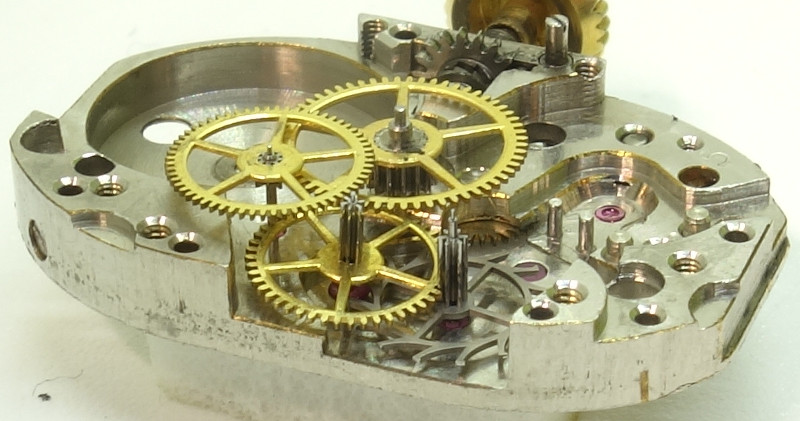

side view of the gear train
The pallets of this swiss pallet lever movement are transparent.
A two-leg screw balance controls the movement. Its frequency of 18000 A/h can be adjusted with a long regulator arm.

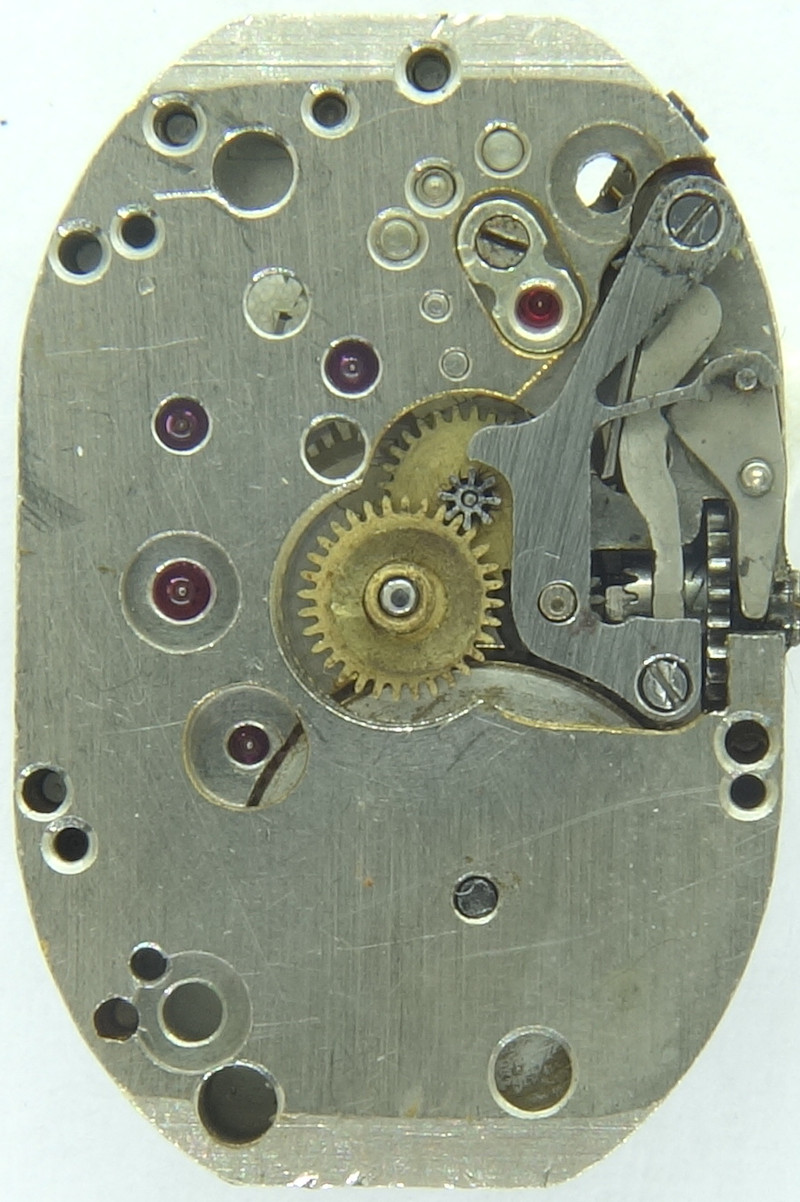

Reconvilier 11: Dial side
On the dial side, you see the yoke windign system and the characteristically shaped setting lever spring.
The balance wheel is not yet shock protected, and so, at position 1 o’clock, you can spot the cap jewel for the balance wheel bearing.
In the lab
Timegrapher result
For such a tiny movement of this age, the timegrapher results, which represent the mean deviations in each position, are pretty OK, and without the exception in position 12 up, it would have been exceptionally good.| horizontal positions | |||
|---|---|---|---|
| dial up | +14 s/d | 313° | 0.2ms |
| dial down | +2 s/d | 290° | 0.3ms |
| vertical positions | |||
| crown right (12 up) | -50 s/d | 217° | 0.5ms |
| crown up (3 up) | +11 s/d | 229° | 0.4ms |
| crown left (6 up) | -2 s/d | 231° | 0.1ms |
| crown down (9 up) | +4 s/d | 239° | 0.6ms |
Technical data
| Manufacturer: | Reconvilier |
| Caliber: | 11 |
| Size: | 5 1/4''' (measured: 12,8 x 19,15mm) |
| A/h: | 18000 |
| Number of jewels: | 15 |
| Escapement: | Pallet lever |
| Balance types: |
monometallic screw balance (two legs) |
| Shock protection(s): |
none |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | no |
| Adjust mechanism: | Short regulator arm |
| Construction: |
|
| Construction type: | solid construction |
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 3 hole(s) |
| References: |
Ebauches: 1949 II 123 |
| Inventory number: | 22054 |
Usage gallery

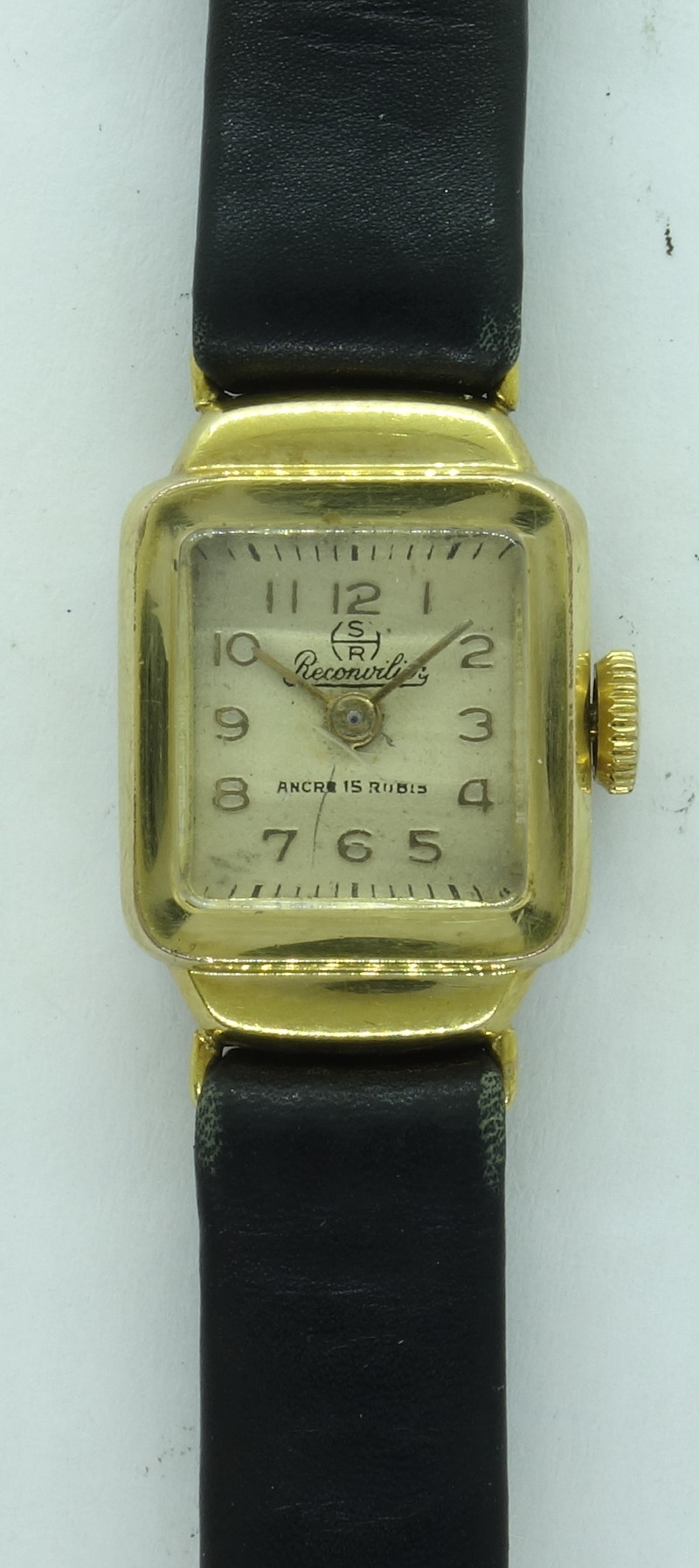

Reconvilier ladies' watch
