AS 1977


AS 1977 |

AS 1977

Description

The AS 1977, which was made in different Versions and by different manufacturies (such as the AS/INT 1977-2) or the FHF/INT 1977-4), is certainly one of the best developed ladies` form movements.

It uses seventeen jewels, an Incabloc shock protection and a moveable hairspring stud. As on most movements of that size, only hours and minutes can be displayed.

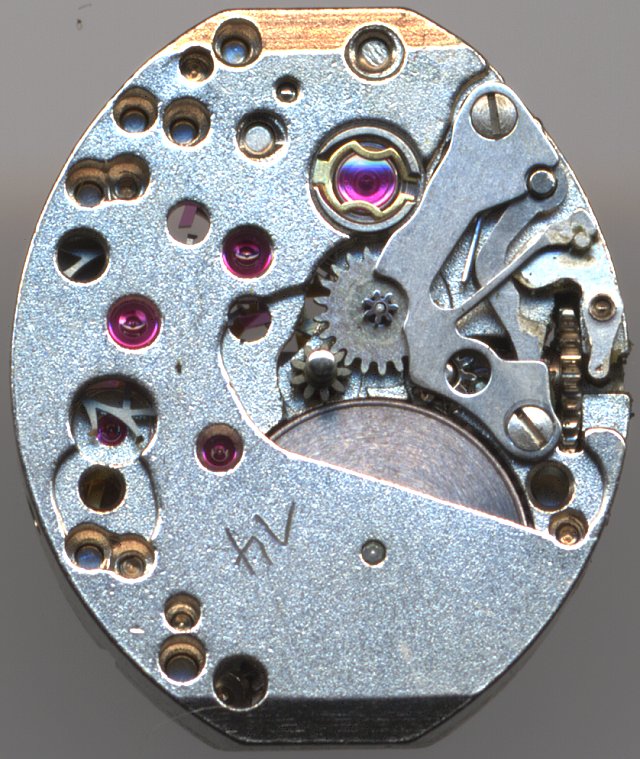

AS 1977: AS 1977 dial side

AS 1977 dial side

Technical data

Manufacturer:AS
Caliber:1977
Size:5 1/2''' (measured: 12,9 x 15,2mm)
Height:3,60mm
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types:monometallic anular balance (three legs)
Shock protection(s):Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 holes
Attachment of setting lever:screwed
References:Flume: K3 77
Mentioning in literature (years):1970 - 1977
Inventory number:25007
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

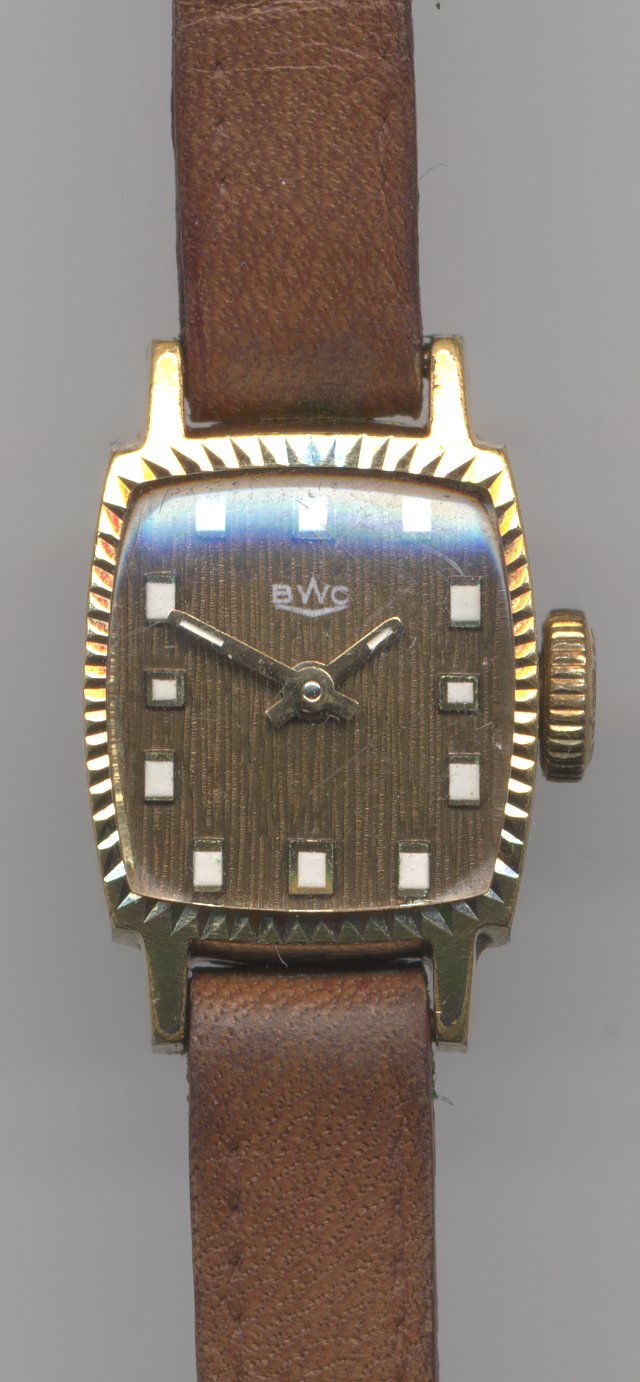

AS 1977: BWC ladies' watch

BWC ladies' watch


Related Movements

AS 1012:
Beat rate 18000 A/h, fixed hairspring stud
AS 1677 (Dugena 2131):
increased beat rate to 21600 A/h, moveable hairspring stud
AS 1977:
changed setting lever screw
AS 1977-2 INT:
Durowe version
