H.F.Bauer B525


H.F.Bauer B525 |

H.F.Bauer B525

Description

The caliber B 525 of Hermann Friedrich Bauer, a south german-located watch manufactury is a form movement in ladies` size. With its non shock-protected screw balance and the yoke winding mechanism it resebles fair quality watches of mid last century and can compete with swiss movements of that time, too.

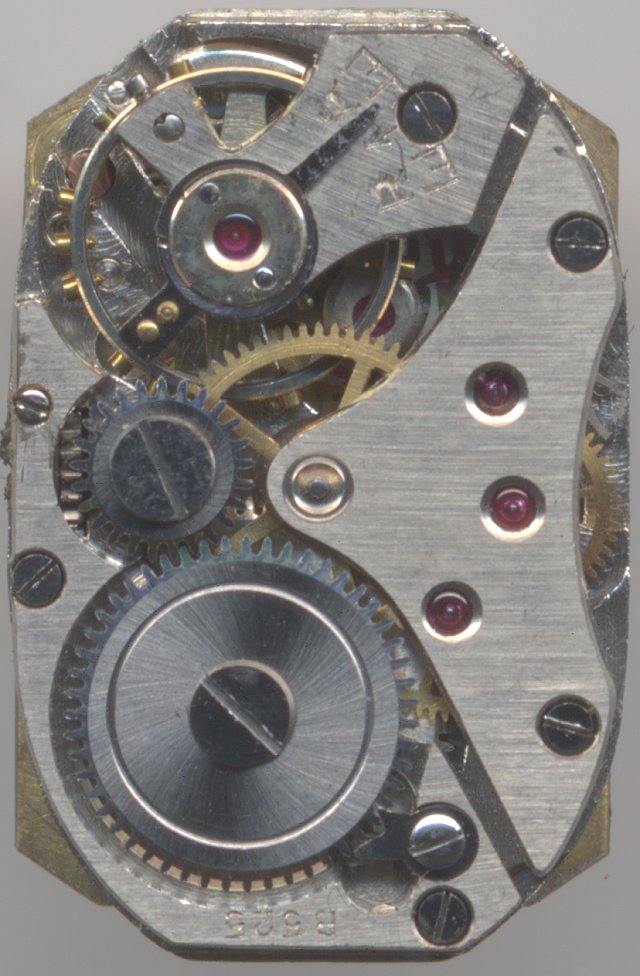

H.F.Bauer B525: H.F.Bauer 525 dial side

H.F.Bauer 525 dial side

Technical data

Manufacturer:Bauer H.F.
Caliber:B 525
Size:5 3/4 x 8 3/4'''
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 holes
References:Flume: 1947 119
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

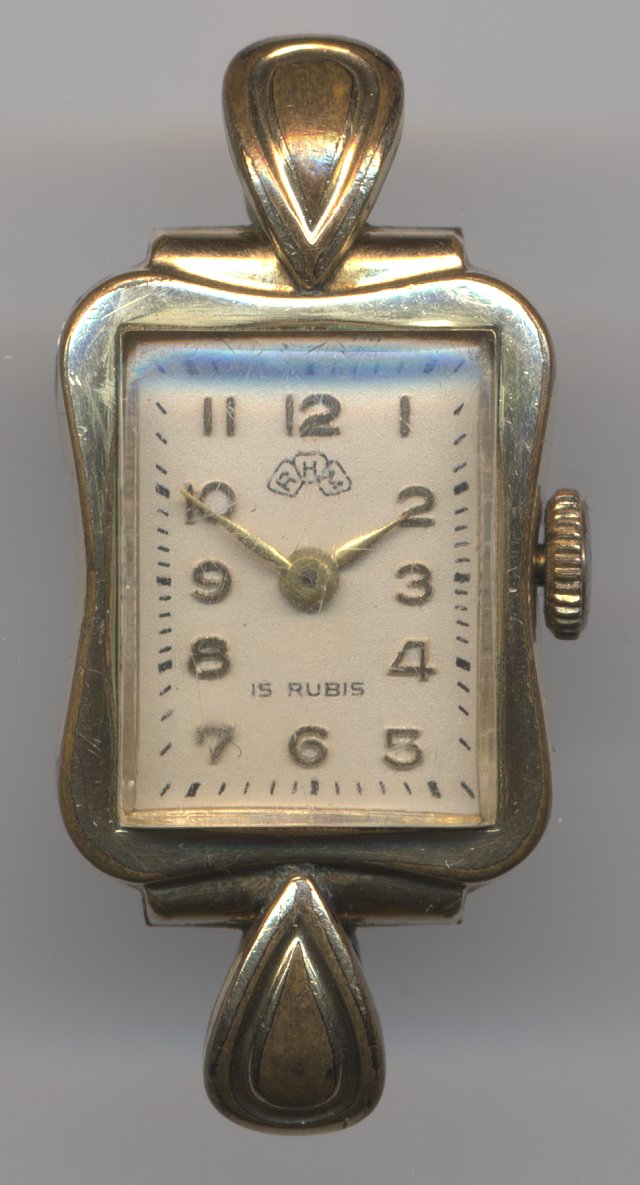

H.F.Bauer B525: RHM ladies' watch

RHM ladies' watch
