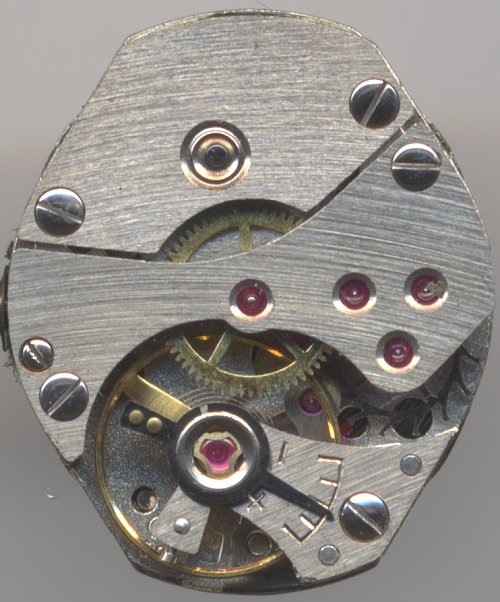

Bifora 68


Bifora 68 |

Bifora 68

Description

This is one of the common form movements by Bifora, which was used in many ladies’ watches. It uses a pallet lever escapement, a Bishock shock protection system and a regulation system with a long regulation hand. The rest is business as usual, only the tight composition of the gears (a 3 o’clock) is noteable, it allowes a larger mainspring.

Technical data

Manufacturer:Bifora
Caliber:68
Size:6 3/4 x 8'''
A/h:18000
lift angle:51.5°
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Bidlingmaier (Bifora)
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Production years:1957 - 1967
References:Flume: 1962 32
Mentioning in literature (years):1959 - 1969
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

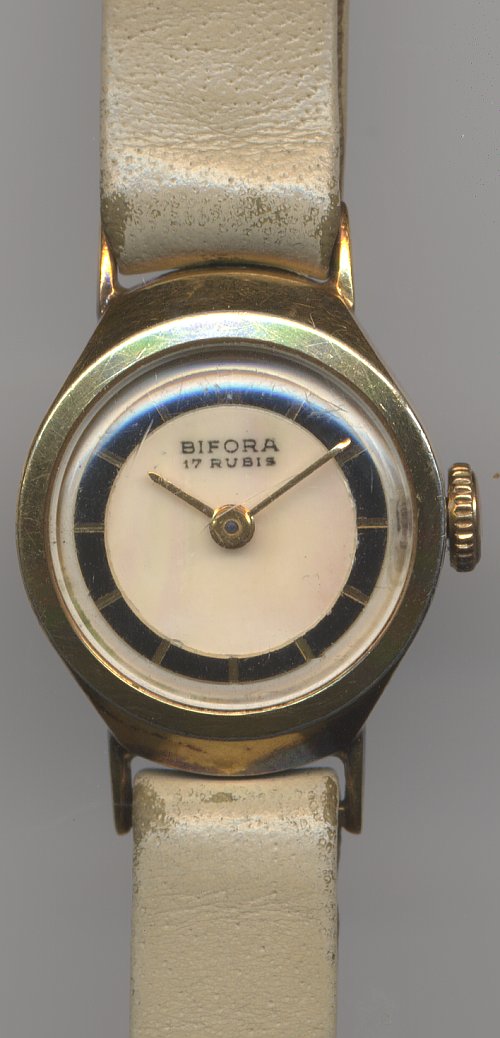

Bifora 68: Bifora ladies' watch with mother of pearl dial

Bifora ladies' watch with mother of pearl dial
