Brac 192
Description

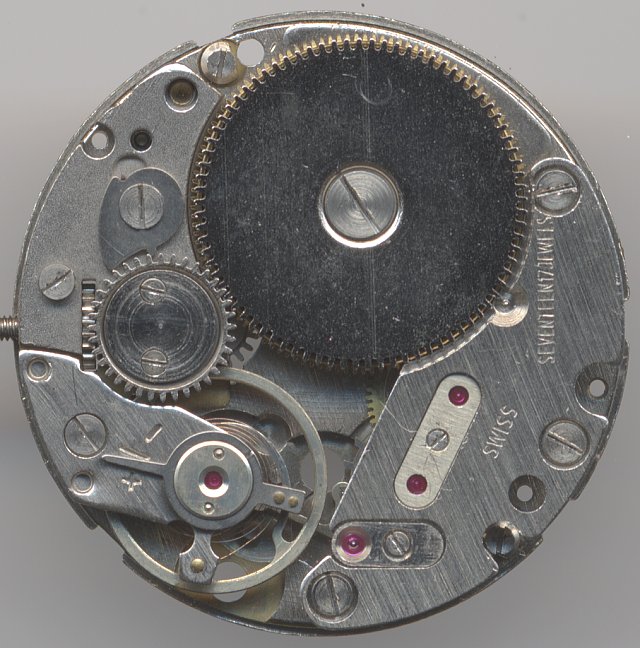

The large Brac 192 is a remarkable pin lever movement, which offers many surprises.
At first glance, you will notice the extra large mainspring barrel, which is even constructed in an overhung position. This will guarantee a good torsional movement and also a flat size.
The second highlight of this movement is the unusually shaped ring balance, whose legs are made extra long and rolling, just like on Wyler movements, which gives a fair shock protection in an extra flat construction.
Furthermore, the Brac 192 wastefully deals with bearing and cap jewels - no wonder, since it was neccessiary to achive the advertising-prone number of 17 jewels.
Last but not least, there’s a simple but effectfully constructed yoke winding system on the dial side. Normally, this is a sign of better and more expensive movements.
To sum it up, the Brac 192 is a really interesting pin lever movement, which is far above the rest of standard pin lever movements.
Brac 192 dial side
Technical data
| Manufacturer: | Brac |
| Caliber: | 192 |
| Size: | 12 1/2''' |
| A/h: | 18000 |
| lift angle: | 46° |
| Number of jewels: | 17 |
| Escapement: | Pin lever |
| Balance types: | Nickel anular balance |
| Shock protection(s): | none |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | no |
| Adjust mechanism: | Long regulator arm |
| Construction: |
|
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 2 holes |
| References: | Flume: K2 - |
Usage gallery
Rimarex mens' watch
