Brac 502


Brac 502 |

Brac 502

Description

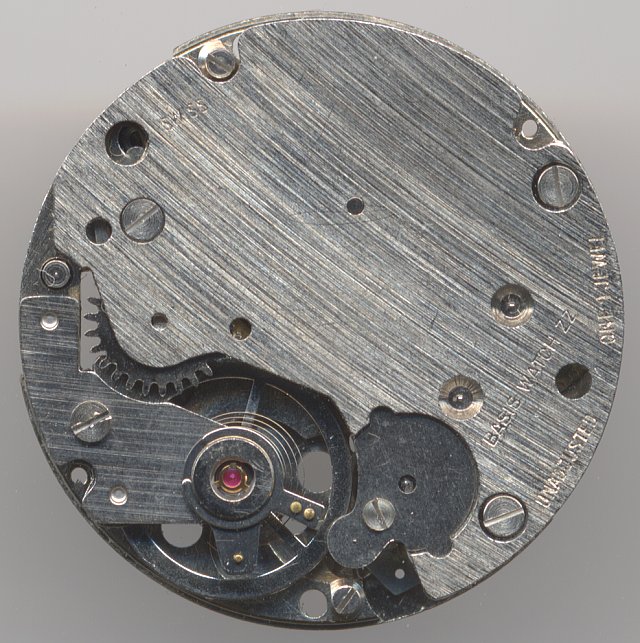

The Brac 502 is a rather modern constructed pin lever movement: It has got indirect driven hands (including the center second hand), a yoke winding mechanism and a large mainspring barrel.

As shock protection system, a “Trishock”-like three-leg system is used; on the dial side, there’s also the same spring of that kind used, but the bearing is just a metal bearing instead of a synthetic ruby.

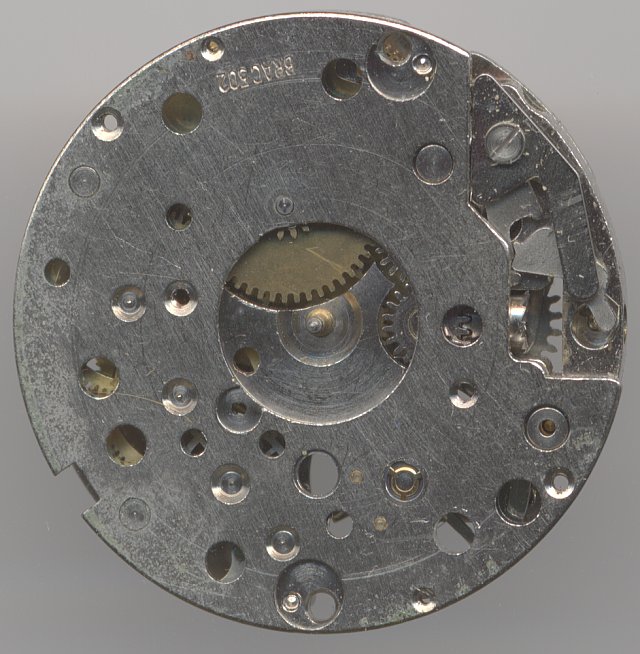

Brac 502: Brac 502 dial side

Brac 502 dial side

Technical data

Manufacturer:Brac
Caliber:502
Size:12'''
A/h:18000
lift angle:42°
Number of jewels:1
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):?
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center second pinion
Winding mechanism:yoke winding system
Setting lever spring:1 hole
Features:
  • SCI (indirect center seconds)
References:Flume: K3 -
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

Brac 502: Orion mens' watch

Orion mens' watch
