DuRoWe 1032


DuRoWe 1032 |

DuRoWe 1032

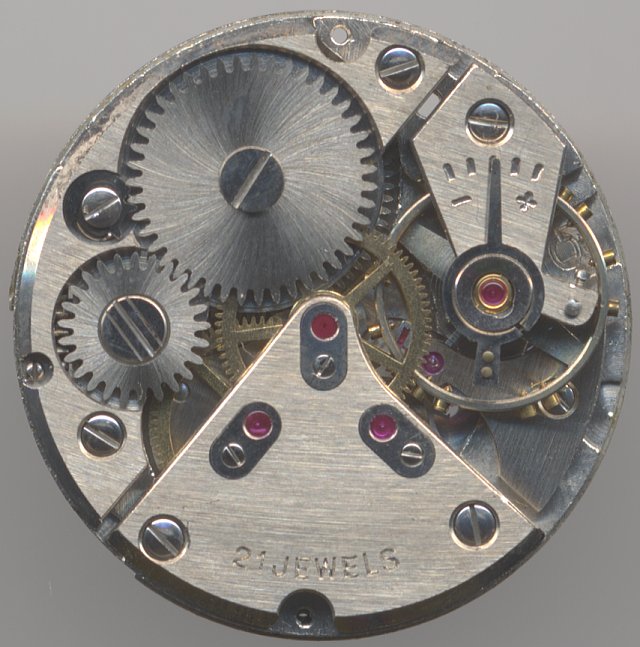

Description

Jewels wherever you look at - this could be the description for the DuRoWe caliber 1032.

Indeed, in this movement, not only all gears run in synthetic rubies, but they are all covered with deck jewels - six altogether.

This movement also contains a screw balance, which is secured by two Duro-Shock shock protection systems and drives with 18000 A/h the directly driven center second hand.

On the dial side, you find the the yoke winding mechanism and around the balance lots of free space for the use of alternative shock protection systems. If any others were used, is unknown.

Another version of this movement was available with only 17 jewels.

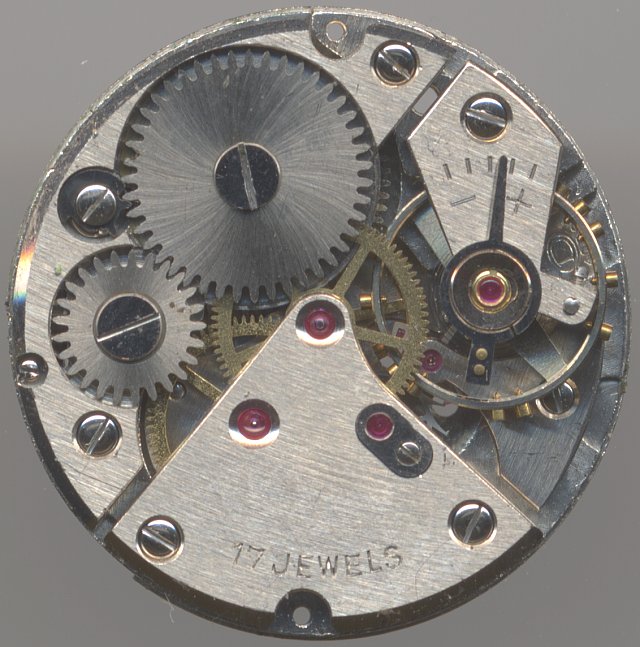

DuRoWe 1032: version with 17 jewels

version with 17 jewels

DuRoWe 1032: DuRoWe 1032 dial side

DuRoWe 1032 dial side

DuRoWe 1032: dial side view of the 17j version

dial side view of the 17j version

Technical data

Manufacturer:DuRoWe
Caliber:1032
Size:10 1/2''' (measured: 23,3mm)
A/h:18000
Number of jewels:17/21
Escapement:Pallet lever
Balance types:monometallic screw balance (two legs)
Shock protection(s):Duro-Shock
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 holes
Attachment of setting lever:screwed
Features:
  • SCD (direct center seconds)
References:Feilner: Bl. 30 2432
Flume: 1958 31
Inventory number:25022
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

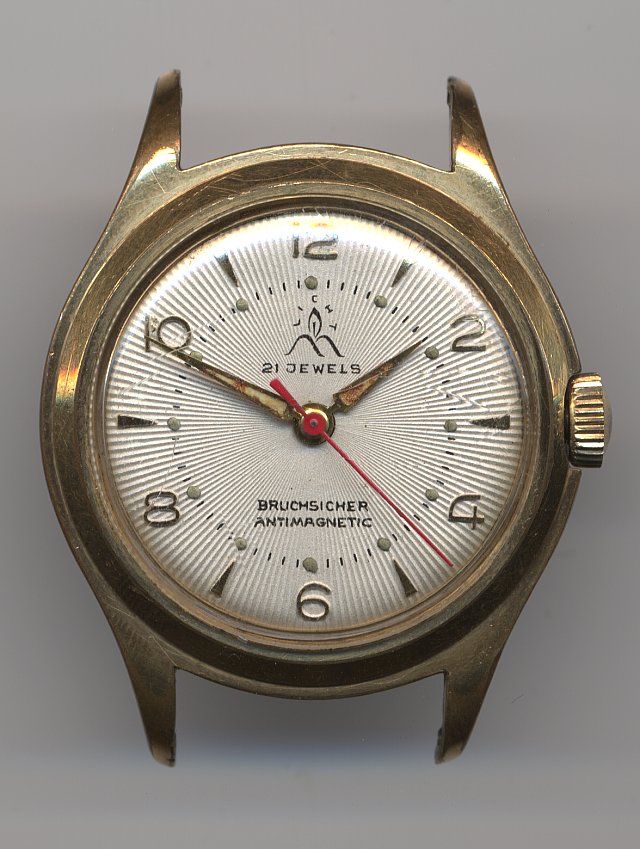

DuRoWe 1032: Licht gents watch

Licht gents watch

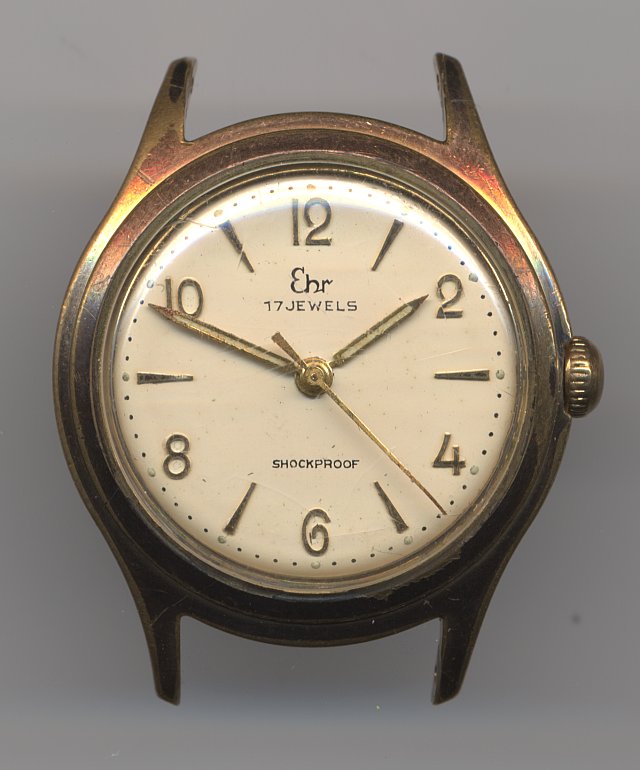

DuRoWe 1032: Ehr gents watch

Ehr gents watch
