DuRoWe 585


DuRoWe 585 |

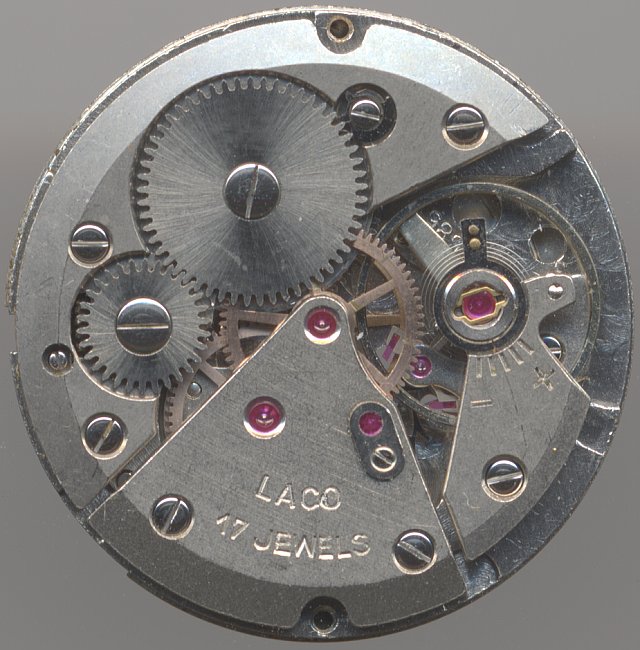

DuRoWe 585

Description

The DuRoWe caliber 585 is a yet modern constructed but not a cheap movement from Pforzheim in Germany. It was probably made in the 1960ies and offers the usual indications of time (hour, minute, second) and date (with semi-fast correction).

The ring balance is secured in two inhouse “Duro-Swing” protection systems. She beats with slow 18000 A/h. The hairspring stud is fixed on the balance cock and there’s no long regulating arm, which makes the regulation process a little bit difficult.

The center second hand is directly driven, as well, as the center minute wheel.

On the dial side, you find a yoke winding mechanism.

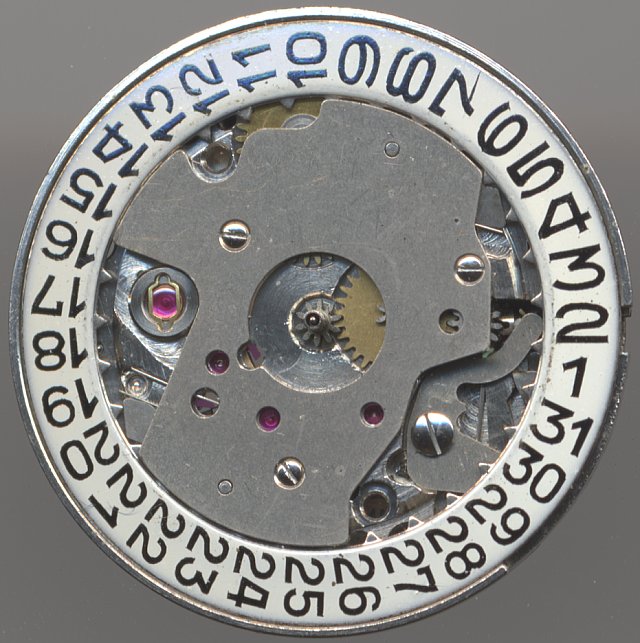

DuRoWe 585: DuRoWe 585 dial side

DuRoWe 585 dial side

Technical data

Manufacturer:DuRoWe
Caliber:585
Size:11 1/2'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Duro-Swing
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)
References:Flume: 1962 - / K3 41
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

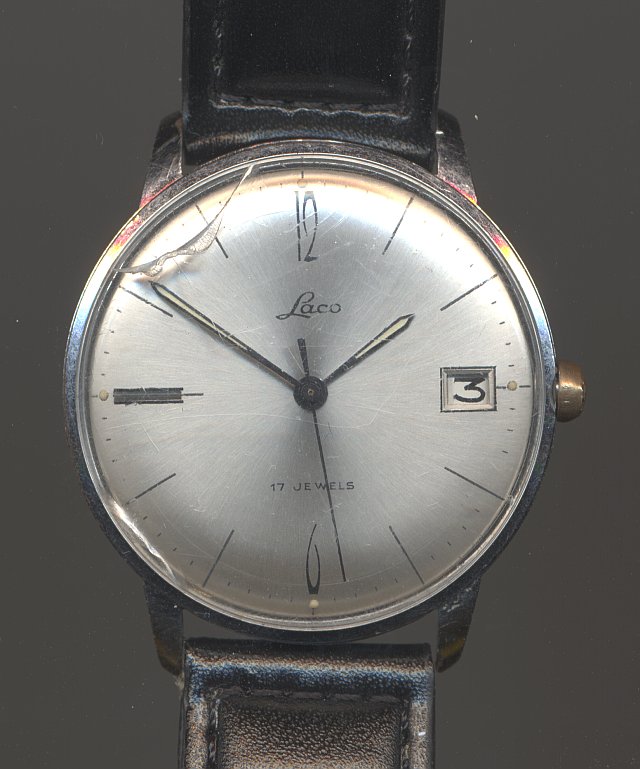

DuRoWe 585: Laco gents watch

Laco gents watch
