EB 1344

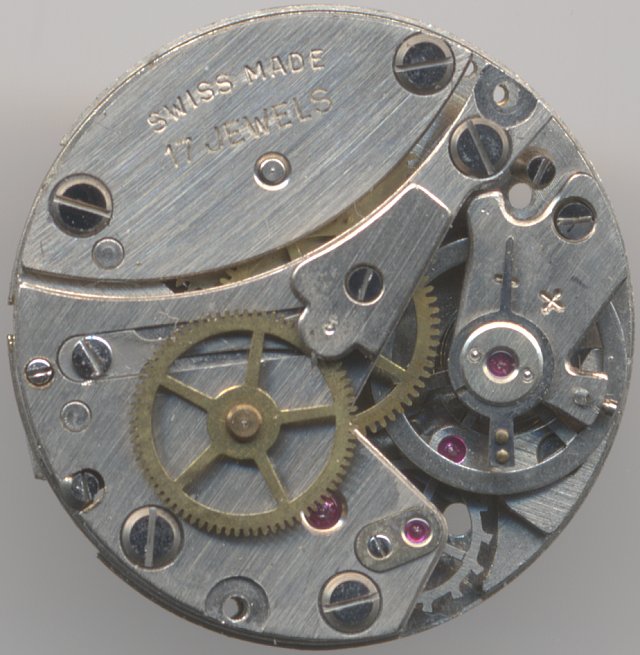

EB 1344 |

EB 1344

Description

The EB 1344 is a quite well made pin lever movement and reminds in its construction very much of a traditional anchor movement. All trains are beared in synthetic rubies, some even in deck jewels.

The only thing (apart from the escapement), that reminds of a cheaper pin lever movement, is the rocking bar keyless works on the dial side.

EB 1344: EB 1344 dial side

EB 1344 dial side

Technical data

Manufacturer:EB
Caliber:1344
Size:8 3/4'''
A/h:18000
lift angle:50°
Number of jewels:17
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • center second pinion
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:3 holes
Features:
  • SCI (indirect center seconds)
References:Flume: 1957 41
Data sheet:1954, 1955
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

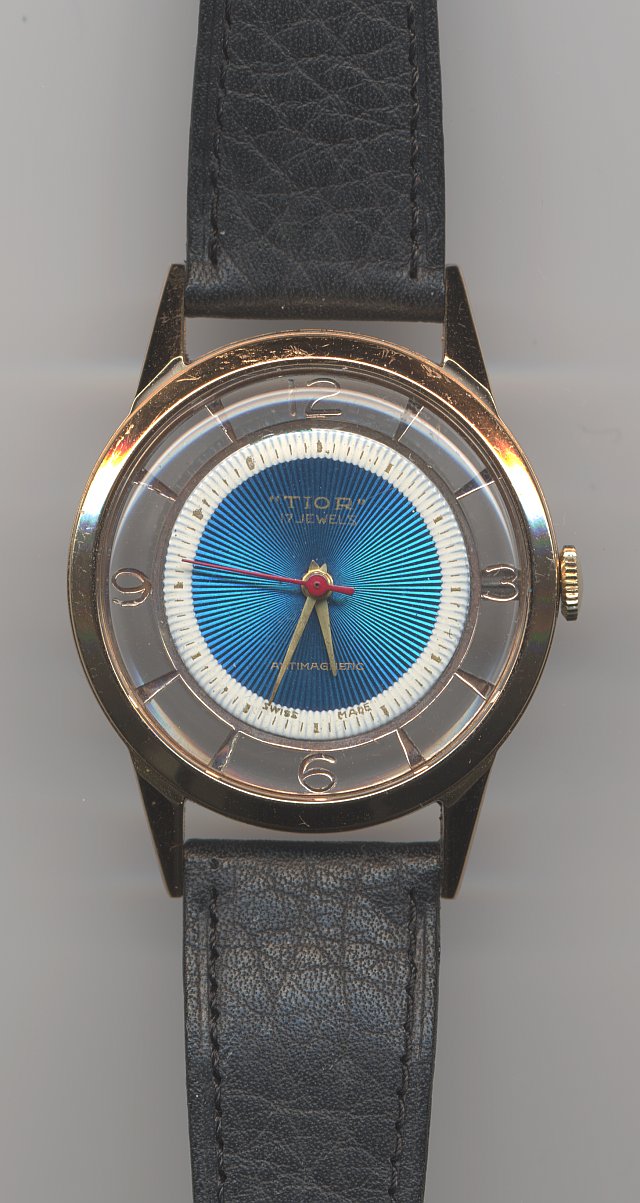

EB 1344: Tior Cocktail gents watch

Tior Cocktail gents watch
