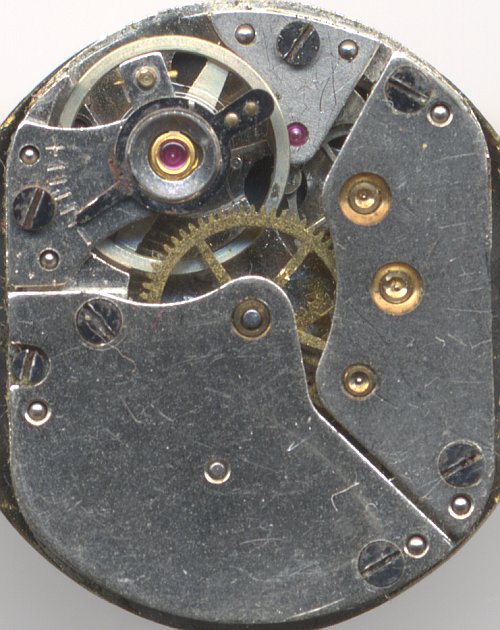

Emes 7


Emes 7 |

Emes 7

Description

This movement is a direct relative of the caliber 5a. The only differece is the usage of two jewels: On the caliber 5a, the anchor wheel is pivoted in two jewels, the caliber 7 uses them on the pin lever itself.

Technical data

Manufacturer:Emes
Caliber:7
Size:6 3/4 x 8 1/2'''
A/h:18000
Number of jewels:7
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):Monorex
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

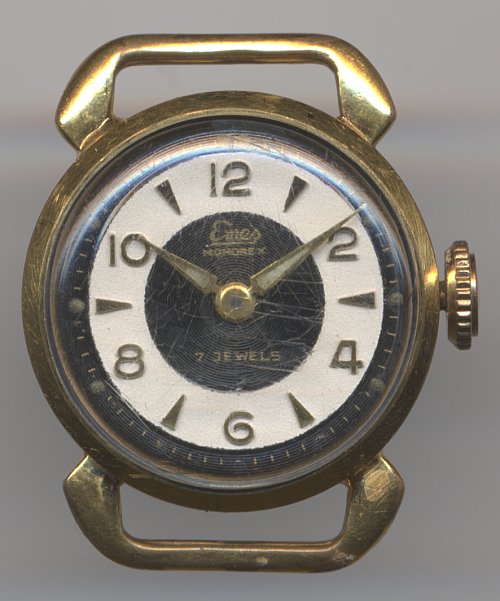

Emes 7: Emes Monorex ladies' watch

Emes Monorex ladies' watch
