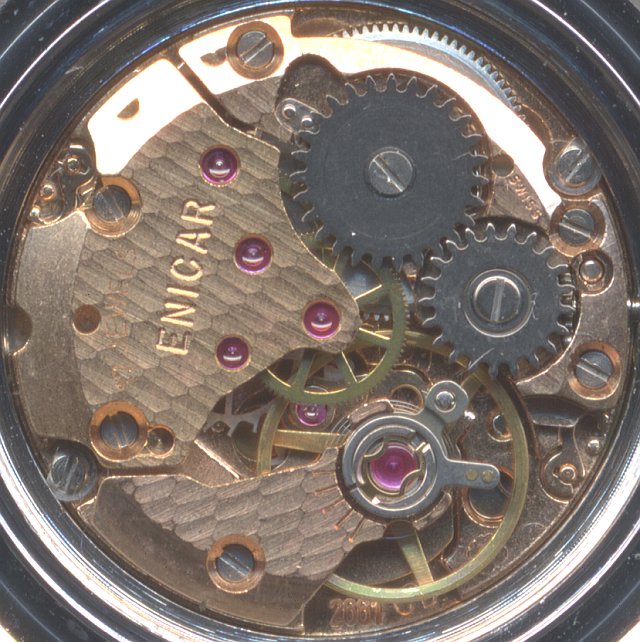

ETA 2661


ETA 2661 |

ETA 2661

Description

In the early 1970ies, ETA lauched their final movement series of 7 3/4 sized movements. Their variations ranged from a simple handwinding movement with 21600A/h (ETA 2640) to the high-beat selfwinding movement with day and date (ETA 2678).
From this series originates this caliber ETA 2661, a high-beat movement with date display.

Technical data

Manufacturer:ETA
Caliber:2661
Size:7 3/4'''
A/h:28800
lift angle:53°
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)
References:Flume: K3N1 -
Data sheet:1972
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

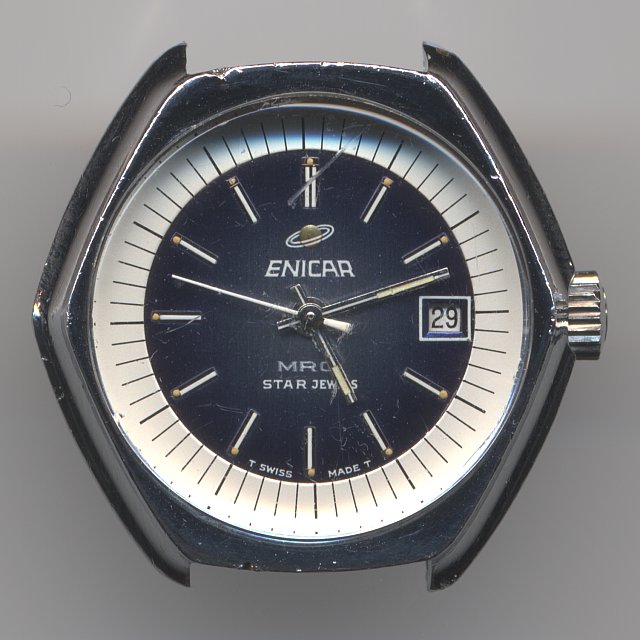

ETA 2661: Enicar MRC Star Jewels ladies' watch

Enicar MRC Star Jewels ladies' watch
