FHF 34


FHF 34 |

FHF 34

Description

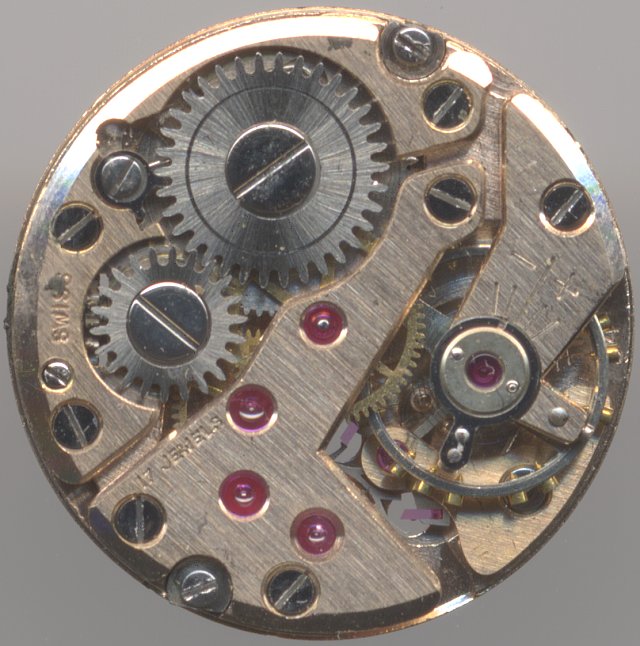

A very small ladies’ watch movement, red golden colored and with screw balance, made by the Fabrique d´Horlogerie de Fontainemelon (FHF). It does not have a shock protection, but survived all the years.

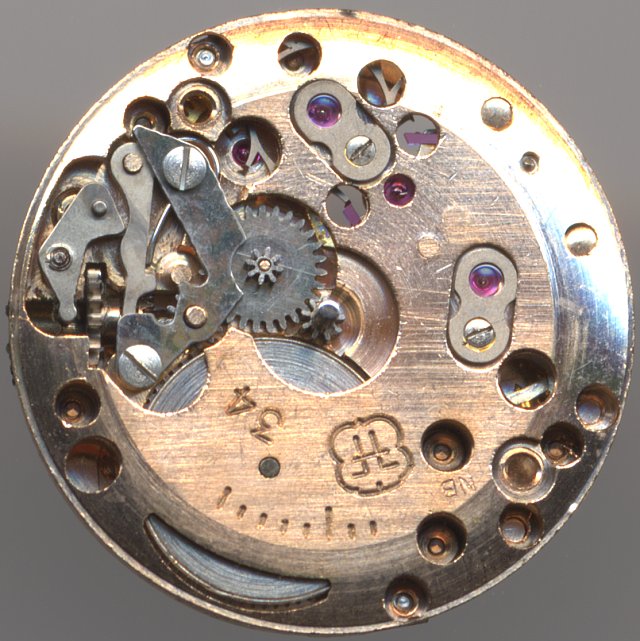

FHF 34: FHF 34 dial side

FHF 34 dial side

Technical data

Manufacturer:FHF
Caliber:34
Caliber base:FHF 32
Size:7 3/4'''
A/h:18000
lift angle:52.23°
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 holes
References:Flume: 1962 2
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

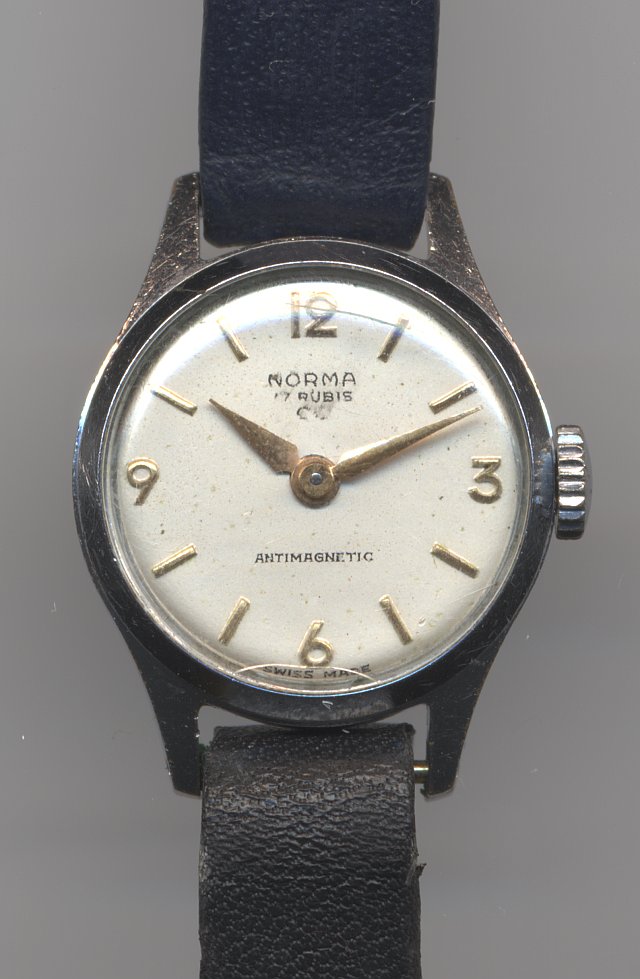

FHF 34: Norma ladies' watch

Norma ladies' watch

Caliber Family
FHF 32
