Guba 25


Guba 25 |

Guba 25

Description

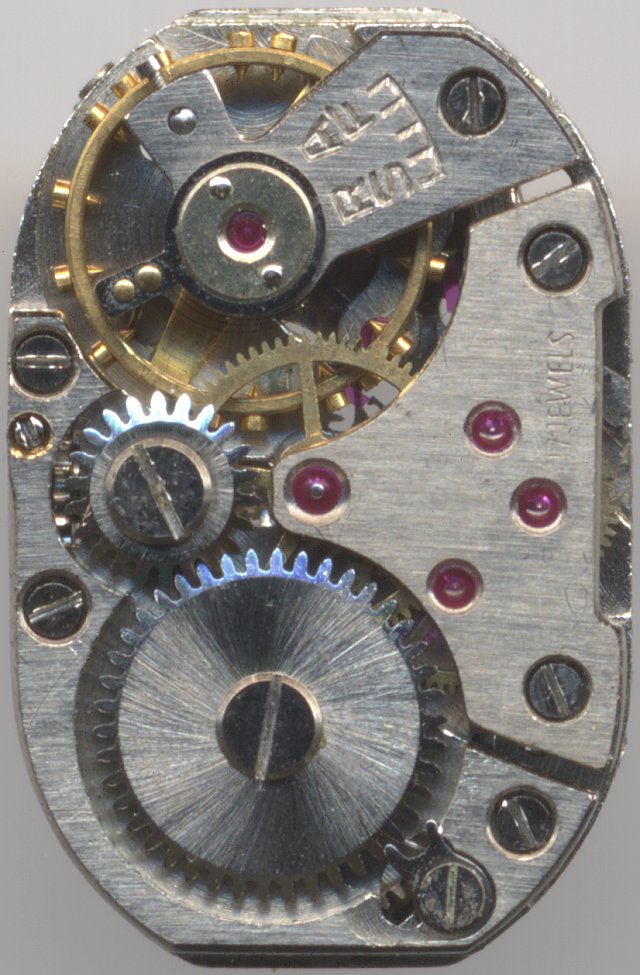

The Guba 25 was launched between 1953 and 1957. It was completely unmarked, but could be identified thanks to the scraching of a watchmaker on the dial plate and the Flume Werksucher from 1957.

It uses seventeen jewels, among them one cap jewel on the dial side. The gold-tone nickel screw balance is not shock protected. The size of the movement is the formerly common 5 3/4 x 8 3/4 lignes.

The Guba 25 was made in different versions and probably over a longer time.

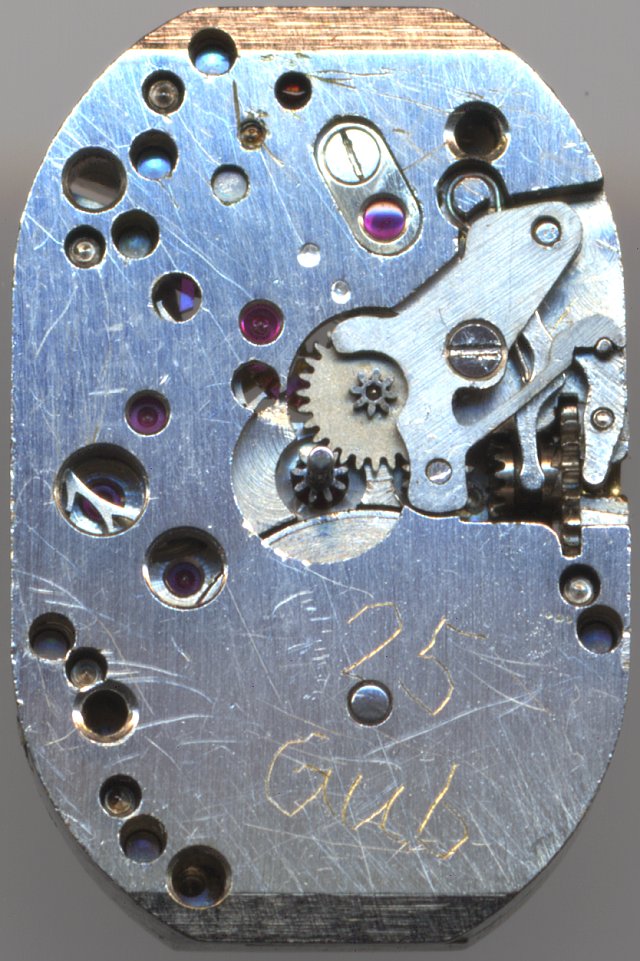

Guba 25: Guba 25 dial side

Guba 25 dial side

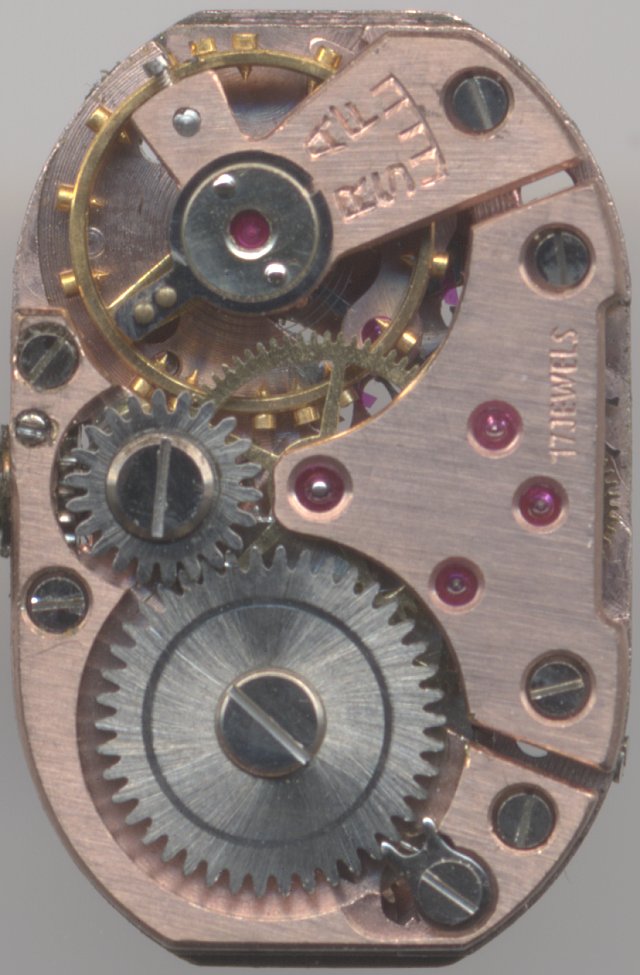

Guba 25: copper colored Version

copper colored Version

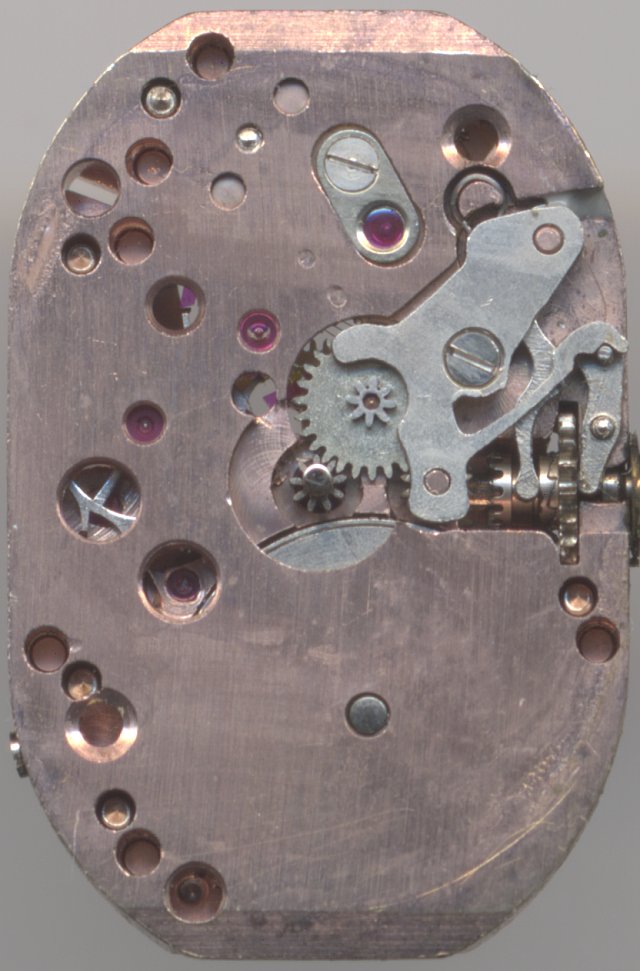

Guba 25: dial side, copper colored version

dial side, copper colored version

Guba 25: shock protected version

shock protected version

Guba 25: dial side, shock protected version

dial side, shock protected version

Technical data

Manufacturer:Guba
Caliber:25
Size:5 3/4 x 8 3/4'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):none
Farr I
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 holes
References:Flume: 1952 33
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

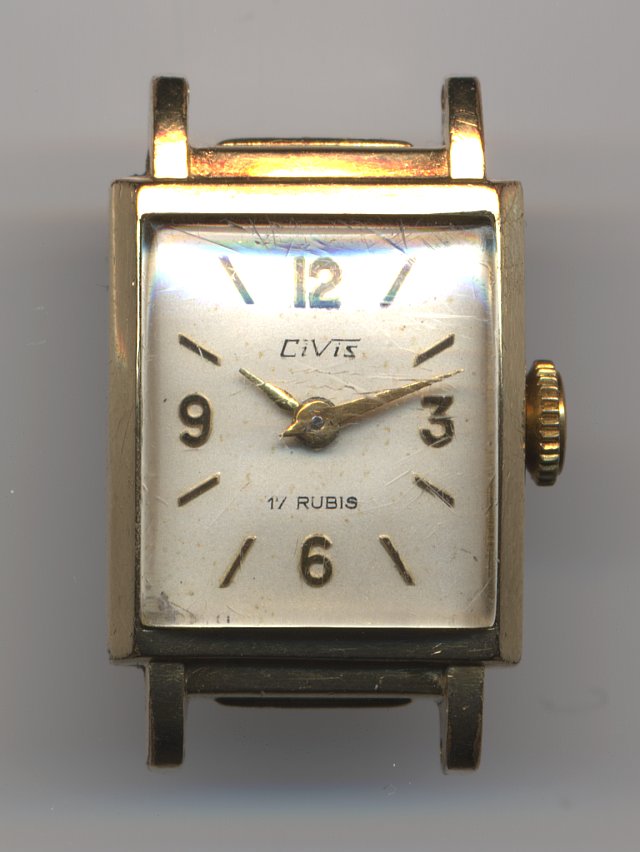

Guba 25: Civis ladies' watch

Civis ladies' watch

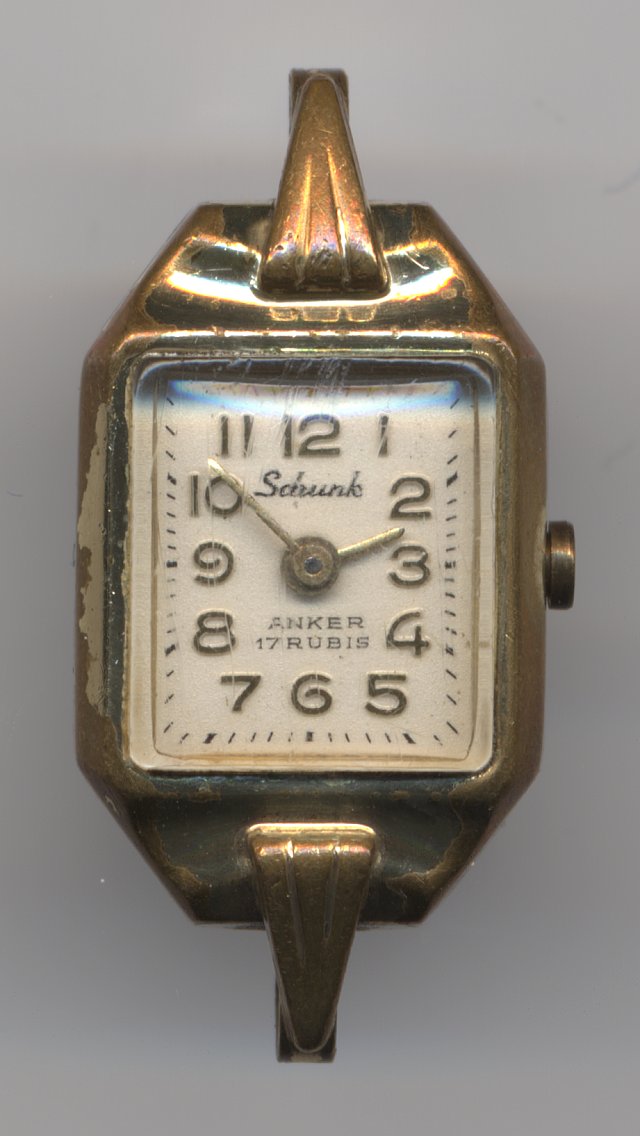

Guba 25: Schunk ladies' watch

Schunk ladies' watch

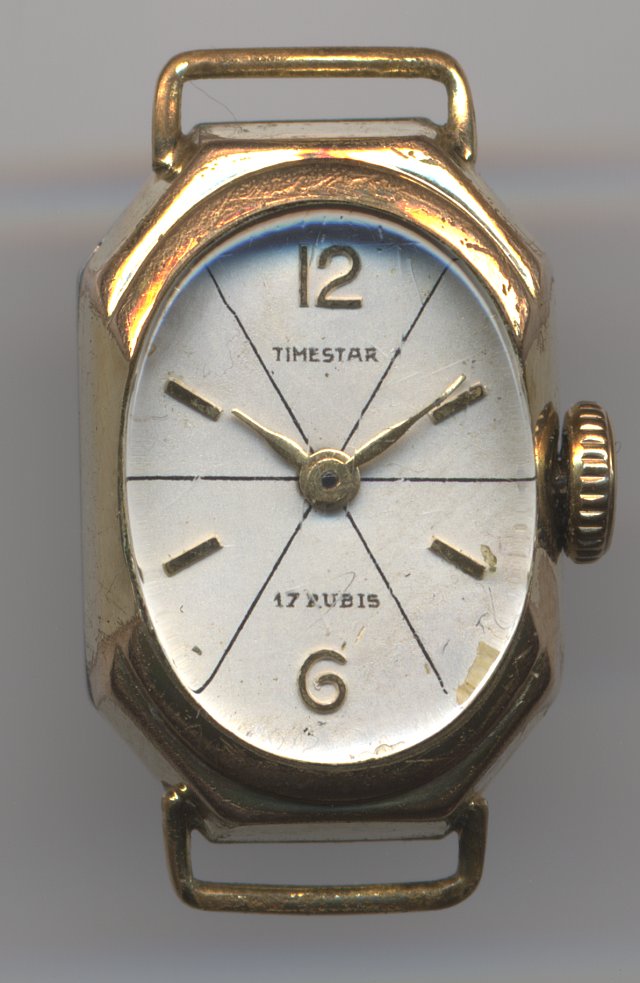

Guba 25: Timestar ladies' watch

Timestar ladies' watch
