Junghans 623.05


Junghans 623.05 |

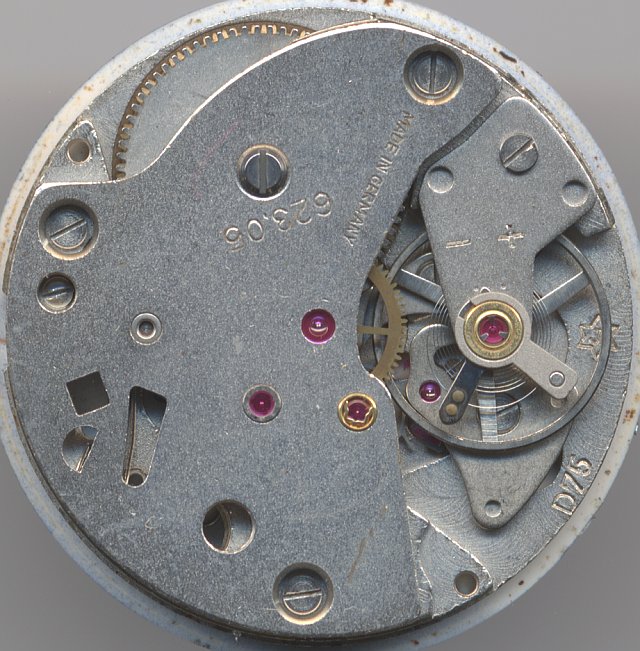

Junghans 623.05

Description

The caliber 623.05 from Junghans, one of their last native movements, which is a rather simple one (only three time indications, no date and only fifteen jewels), was used by Diehl, the mother company of Junghans, in their watches.

Unlike on caliber 623.20, the main plate is flat. The main plate carries all gears, which makes servicing quite difficult. On the other hand, the anchor is beared in a Diafix shock protection system, while the balance runs in simple Ruby Neutro-Shock bearings.

Technical data

Manufacturer:Junghans
Caliber:623.05
Size:11 1/2'''
A/h:21600
Number of jewels:15
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Ruby-Neutro-Shock
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center minute wheel
Features:
  • SCD (direct center seconds)
Production years:1974 - 1976
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

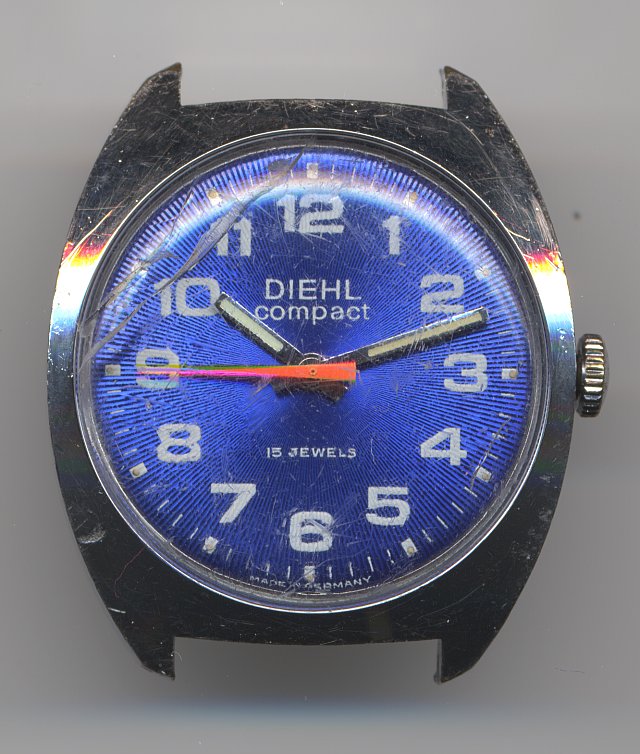

Junghans 623.05: Diehl Compact gents watch

Diehl Compact gents watch
