Kienzle 051/00f


Kienzle 051/00f |

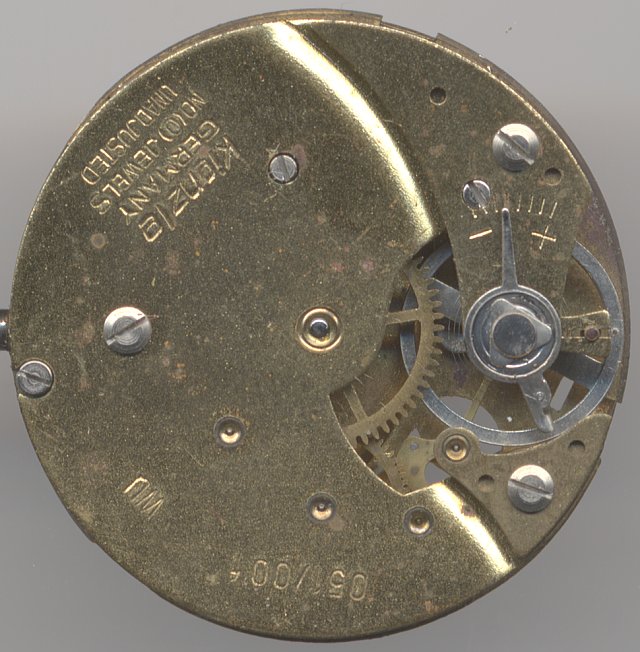

Kienzle 051/00f

Description

The Kienzle caliber 051/00f is a very typical Kienzle pin lever movement without jewel bearings.

The ring balance uses a pointed staff and therefor lacks a shock protection. Since the balance cock has to be adjusted perfectly in height, Kienzle uses a quite ingenious and funny construction: A small screw on the balance cock bends(!) it to the required height.

The rest of the movement is pretty standard for Kienzle: A simple pin lever escapement (without jewel pins), a small decentral second hand and a rocking bar winding mechanism on the dial side.

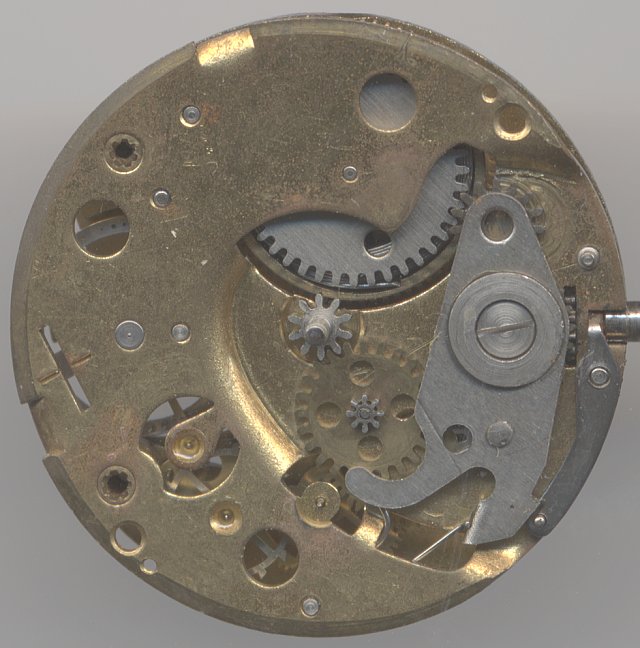

Kienzle 051/00f: Kienzle 051/00f dial side

Kienzle 051/00f dial side

Technical data

Manufacturer:Kienzle
Caliber:051/00f
Size:12'''
A/h:18000
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:3 holes
Features:
  • s (decentral seconds)
References:Flume: 1958 r.90
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

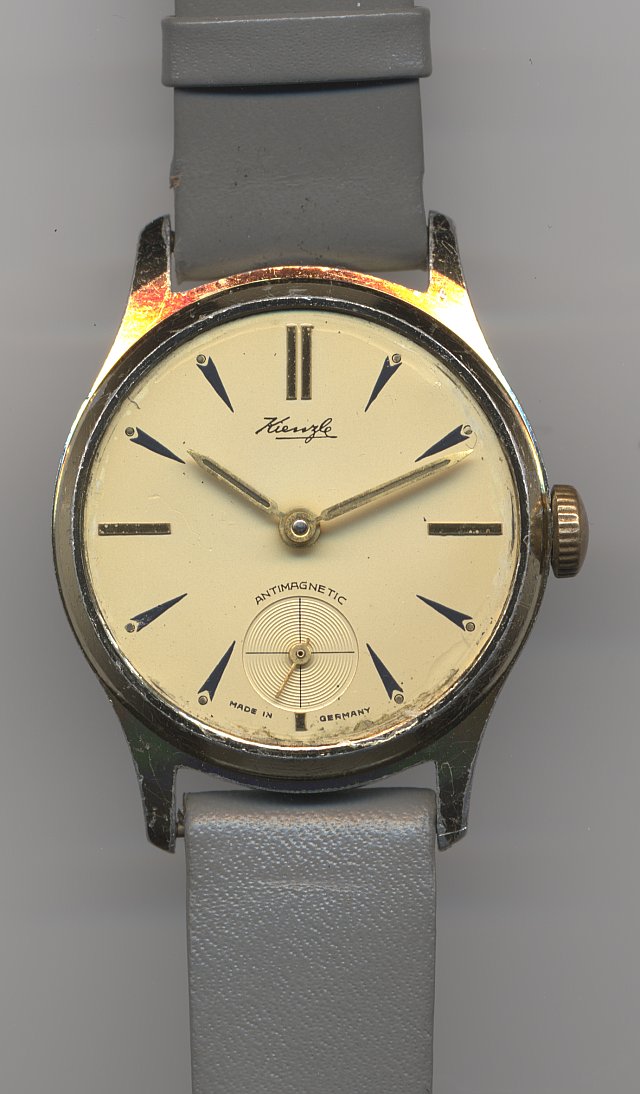

Kienzle 051/00f: Kienzle gents watch

Kienzle gents watch
