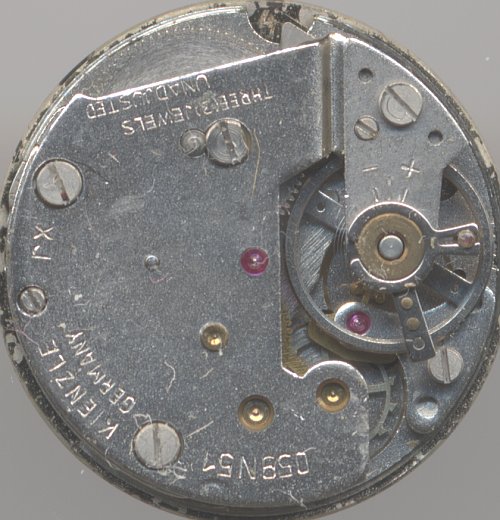

Kienzle 059N51


Kienzle 059N51 |

Kienzle 059N51

Description

Among the smallest inhouse movements from Kienzle is the caliber 059N51, which only measures 8 lignes in diameter.

It uses some untypical construction details, such as a pin lever escapement with metal pins, an integrated indirect driven center second and an indirect driven minute hand.

Technical data

Manufacturer:Kienzle
Caliber:059N51
Size:8'''
A/h:18000
Number of jewels:3
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel, center second pinion
Winding mechanism:rocking bar winding system
Features:
  • SCI (indirect center seconds)
References:Flume: K3 -
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

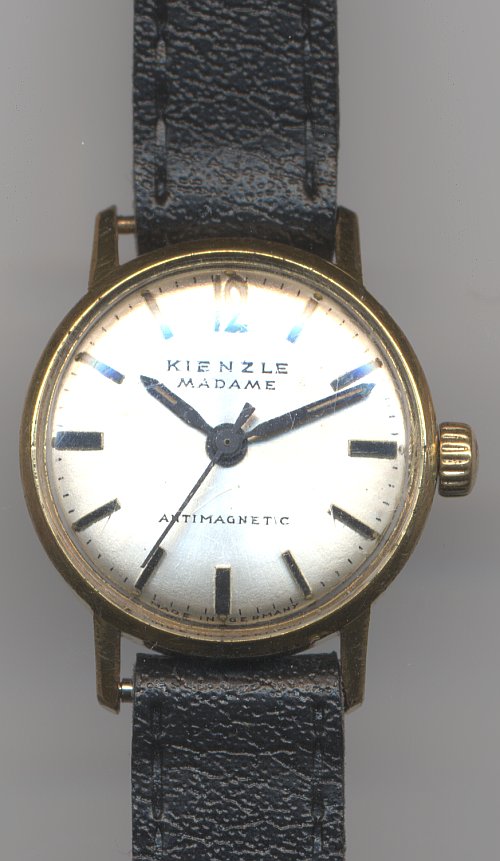

Kienzle 059N51: Kienzle Madame ladies' watch

Kienzle Madame ladies' watch
