Lorsa 8F
Description
The french caliber Lorsa 8F is a common movement for ladies' watches, made in France and probably from the 1970s.
It is constructed in the familiar tonnau shape with 6 3/4 x 8 lignes and was available wiht different types of shock protections (known are at least Antichoc S65 and Novodiac).

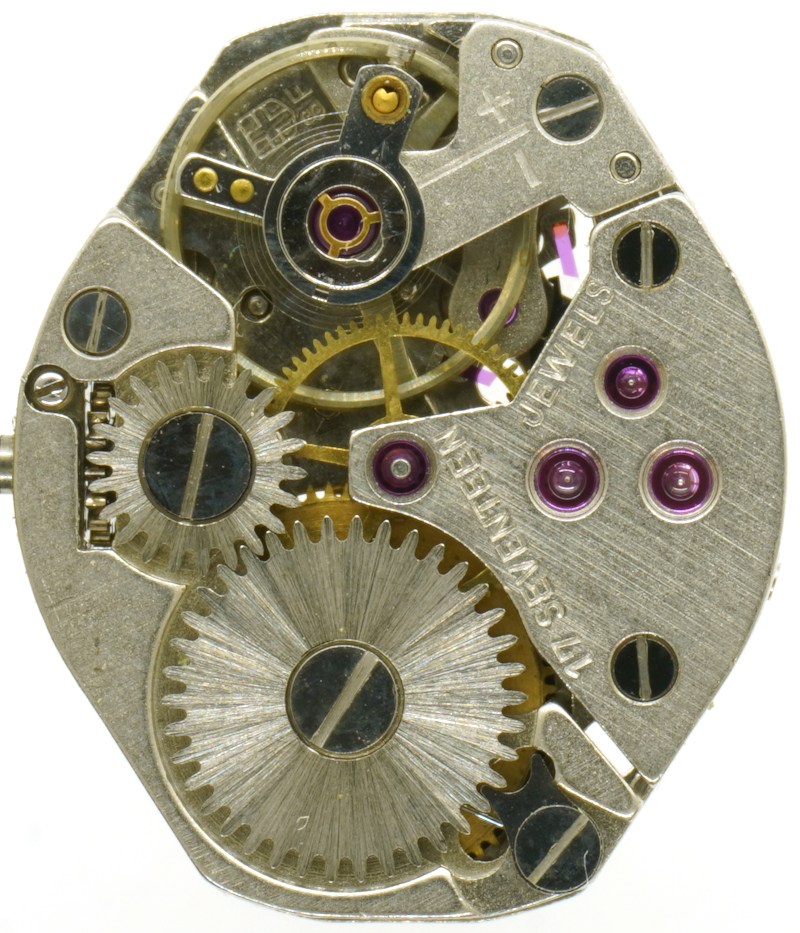

version with Novodiac shock protection
Construction-wise, the Lorsa 8F is similar to compareable french calibers, and also here, all important bearings, including the minute wheel bearings, contain rubies. To reach the number of 17 jewels, the minute wheel bearings allow the lack of cap jewels for the escape wheel bearings.
base plate
We have the typical gear train for these kind of movements: The mainspring barrel drives the center minute wheel, followed by third wheel, seconds wheel and large, filigree escape wheel.
gear train
For space-saving reasons, the dial-side bearings of third- and seconds wheel are located about the escape wheel.
The bearings of the three wheels also form an almost equilateral triangle.

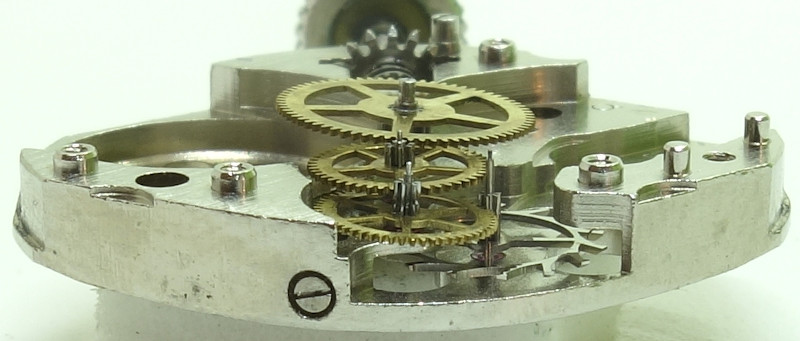

side view of the gear train
As noted above, the three-leg anular balance is beared in different types of shock protections. It beats with 21600 A/h and can be adjusted at the hairspring key only.

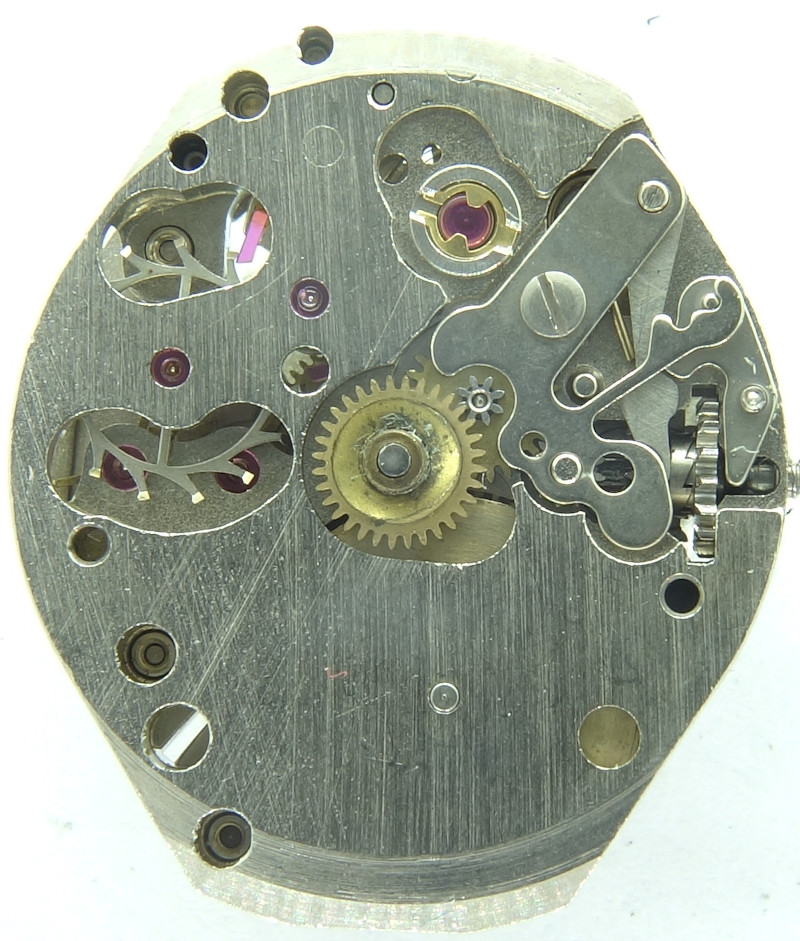

Lorsa 8F: Dial side
On the dial side, you can easily spot the large escape wheel and also the yoke keyless works.

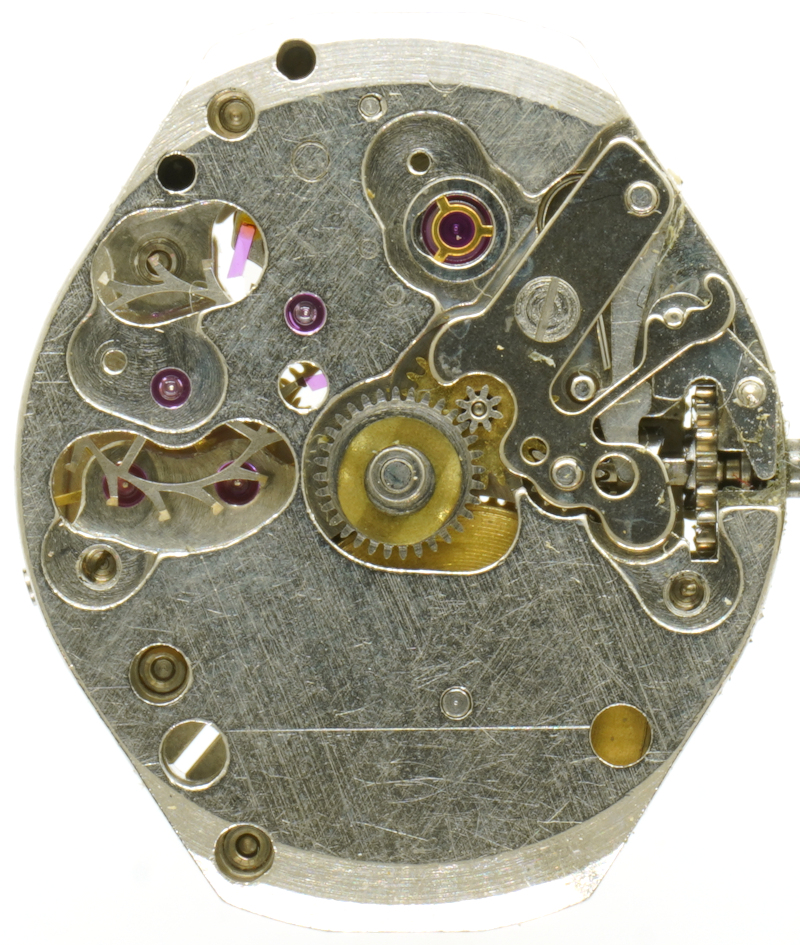

dial side with Novodiac shock protection
In the lab
Timegrapher result
For such a small and about 50 year old movement, the timegrapher rates are very well, only the runaway in position “dial up” clouds the picture somewhat.| horizontal positions | |||
|---|---|---|---|
| dial up | -22 s/d | 271° | 2,2ms |
| dial down | +6 s/d | 256° | 2,2ms |
| vertical positions | |||
| crown right (12 up) | +9 s/d | 208° | 2,1ms |
| crown up (3 up) | +2 s/d | 210° | 2,6ms |
| crown left (6 up) | +-0 s/d | 204° | 2,8ms |
| crown down (9 up) | +4 s/d | 218° | 2,4ms |
Technical data
| Manufacturer: | Lorsa |
| Caliber: | 8F |
| Size: | 6 3/4 x 8''' (measured: 15,15 x 17,8mm) |
| A/h: | 21600 |
| Number of jewels: | 17 |
| Escapement: | Pallet lever |
| Balance types: |
Nickel anular balance |
| Shock protection(s): |
Antichoc S65 Novodiac |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | yes |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 5 hole(s) |
| References: |
Flume: K3 87 |
Usage gallery

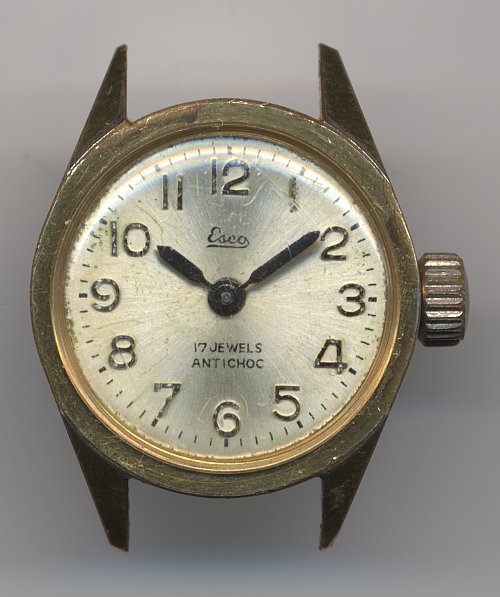

Esco ladies' watch

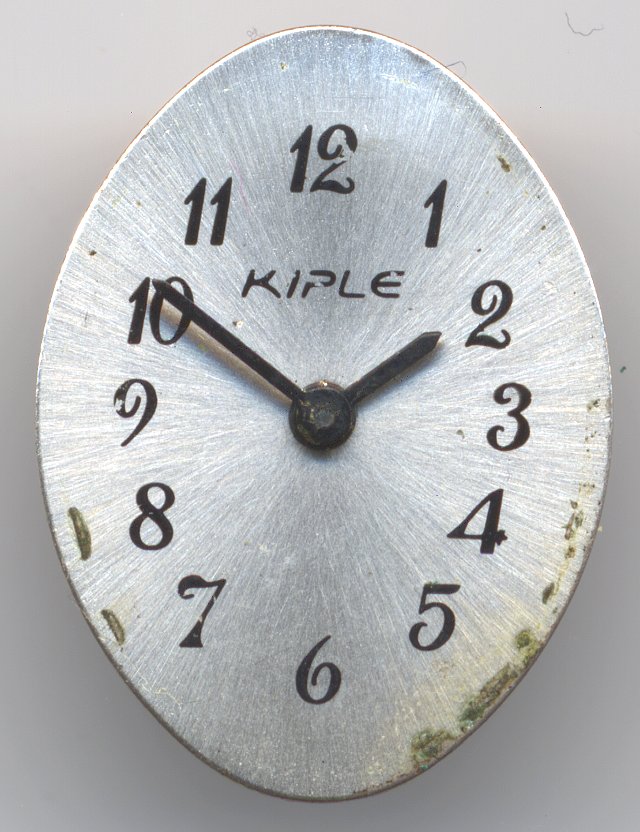

Kiple ladies' watch (case missing; Novodiac)

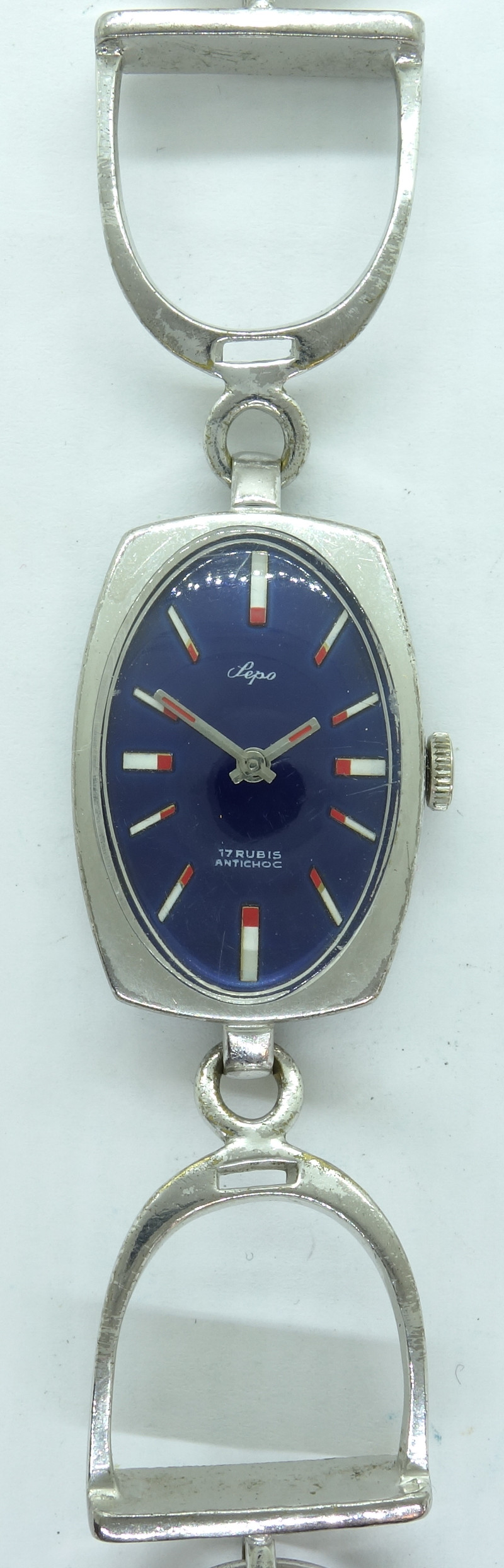

Sepo ladies' watch
