Mauthe 610


Mauthe 610 |

Mauthe 610

Description

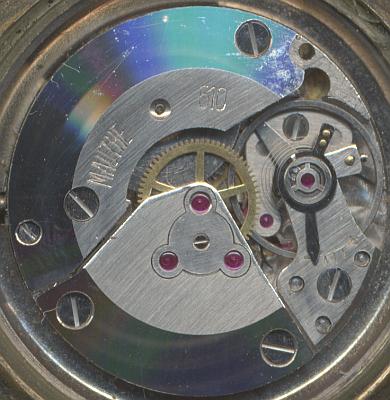

The images shows an optical illusion: The movement is not tarnished, but it is highly polished, which the scanner can only show in rainbow colors.

Technical data

Manufacturer:Mauthe
Caliber:610
Size:10 1/2'''
A/h:18000
Number of jewels:19
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Mauthe
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:unknown
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Features:
  • SCD (direct center seconds)
References:Flume: 1957 35
Mentioning in literature (years):1957
Data sheet:1956
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.
