PG Time E355


PG Time E355 |

PG Time E355

Description

Yet another movement with no references at all in literature or online research.

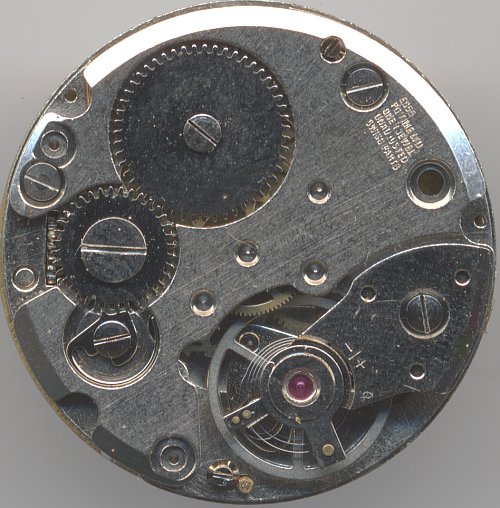

The caliber E355 is a simple pin lever movement with just one jewel and no shock protection. The only speciality is the false moon phase indication: Instead of the date numbers, the date ring was printed with ten different moon phases. Theoretically a nice idea, but with a major fault: A full moon phase takes 28.5 days, while one full rotation of the date ring takes 31 days.

How serious a watch with such a useless indication can be taken, shows the usage gallery below: Three printed chronograph dials with printed(!) hands and two completely useless turning rings (one from 0-60, the other one from I to XII), whose sole purpose is, that the watch can contain two more crowns and thus look expensive.

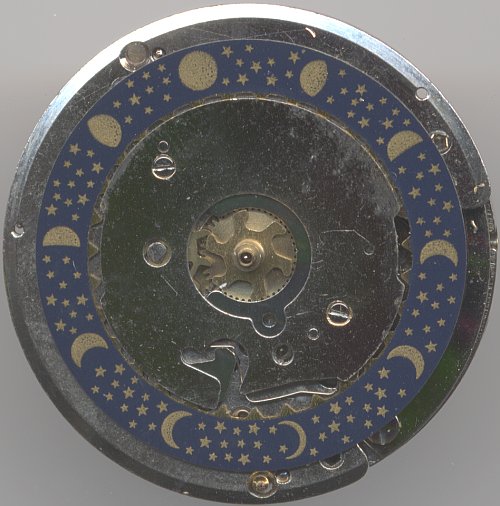

PG Time E355: PG Time E355 dial side

PG Time E355 dial side

Technical data

Manufacturer:PG Time
Caliber:E355
Size:11 1/2'''
A/h:21600
Number of jewels:1
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

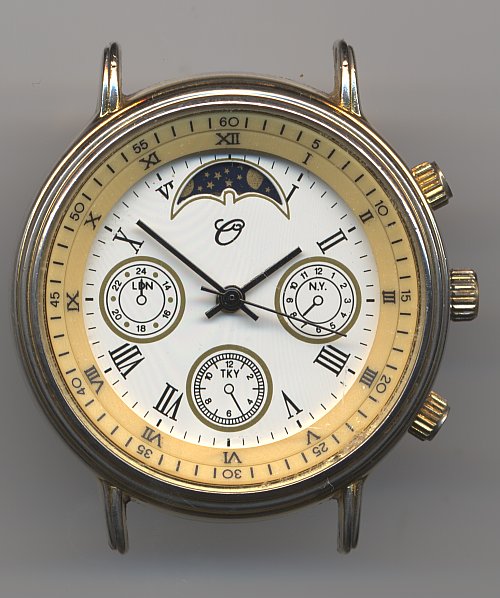

PG Time E355: O (or Q) gents watch with fake indicators

O (or Q) gents watch with fake indicators
