Poljot 2614.2H


Poljot 2614.2H |

Poljot 2614.2H

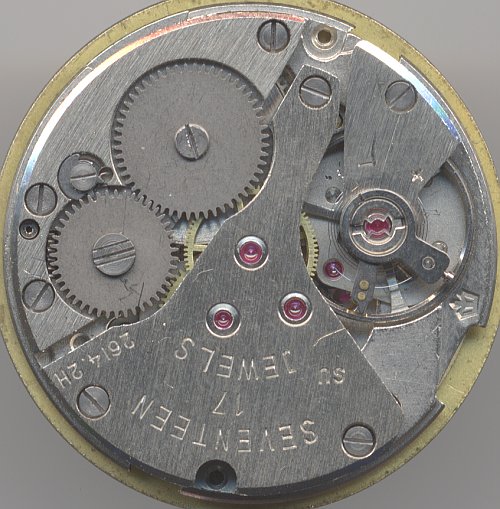

Description

This movement is the second refactoring (therefor the suffix “.2H”) of the handwound Poljot movement with data and a diameter of 26mm. It has got a direct driven center second hand, a Glucydur balance and a Poljot shock protection system.

A pretty funny fact is, that the watch displayed below carries a “Made in Germany” on the dial…

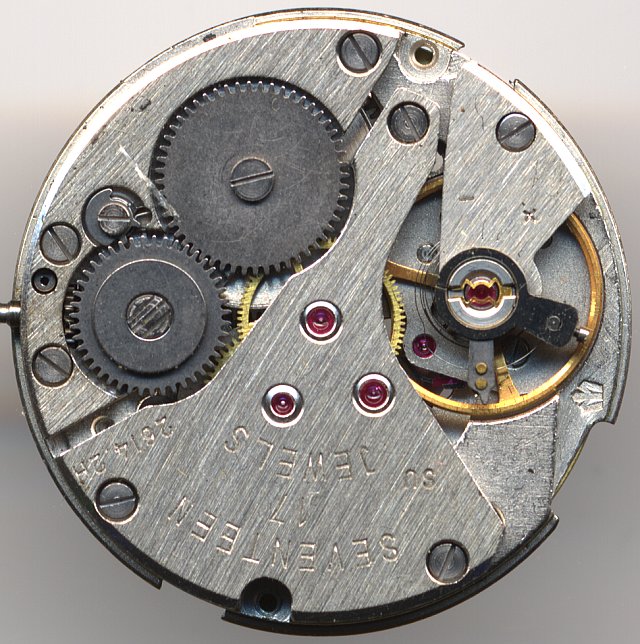

Poljot 2614.2H: other version with detail differences

other version with detail differences

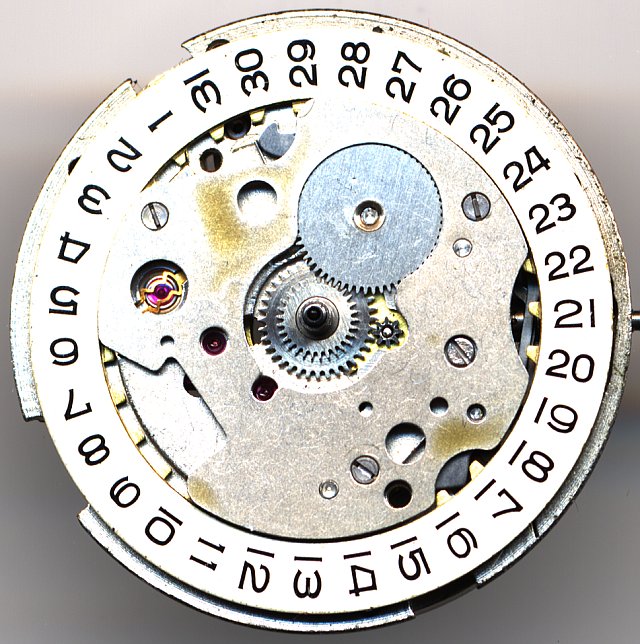

Poljot 2614.2H: Poljot 2614.2H dial side

Poljot 2614.2H dial side

Technical data

Manufacturer:Poljot
Caliber:2614.2H
Caliber base:Poljot 2609.H
Size:11 1/2'''
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types:Glucydur anular balance
Shock protection(s):Poljot
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
Winding mechanism:yoke winding system
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
Mentioning in literature (years):1983
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

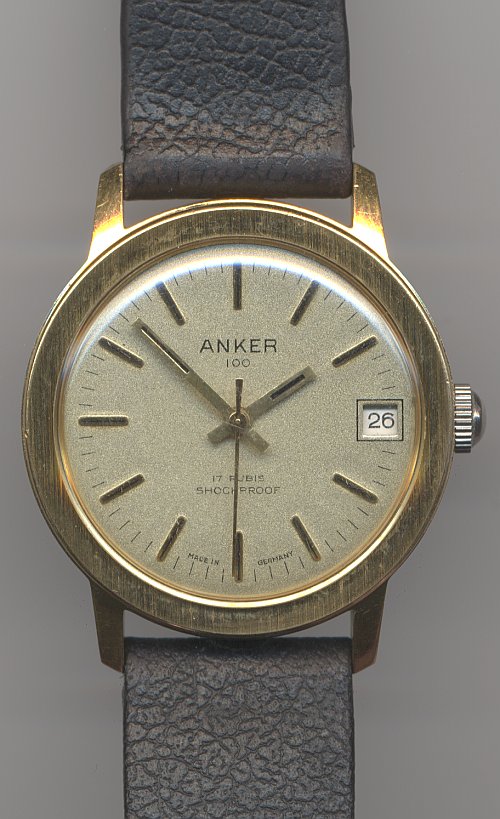

Poljot 2614.2H: Anker 100 gents watch

Anker 100 gents watch

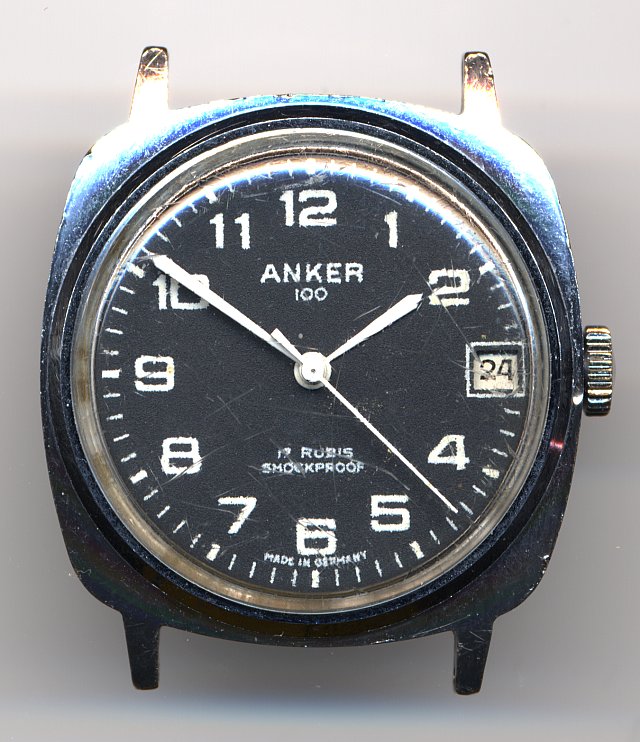

Poljot 2614.2H: Anker 100 gents watch

Anker 100 gents watch

Caliber Family
Poljot 2609.H
