PUW 3000


PUW 3000 |

PUW 3000

Description

This is the last electromechanical movement of the german Pforzheimer Uhrenwerke. You can easily see all signs of the end of traditional watchmaking: With much plastic and undecorated plates it resembles more of a quartz movement instead of a classic mechanical movement. And just look at the regulator: How shall that simple device of two metal strips with lots of tolerance achive a good precision? Unfortunately, it cannot be tested, since the movement is already gummy.

Technical data

Manufacturer:PUW
Caliber:3000
Size:6 3/4 x 8'''
A/h:28800
Number of jewels:11
Escapement:Electric
Shock protection(s):Rufa-Anti-Shock
Balance bearing / direction hairspring:Bridge
Moveable stud:yes
Adjust mechanism:Hairspring key
Features:
  • SC (center seconds)
  • EL (elecromechanically powered)
References:Flume: K3N1 -
Mentioning in literature (years):1971 - 1972
Data sheet:1974
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

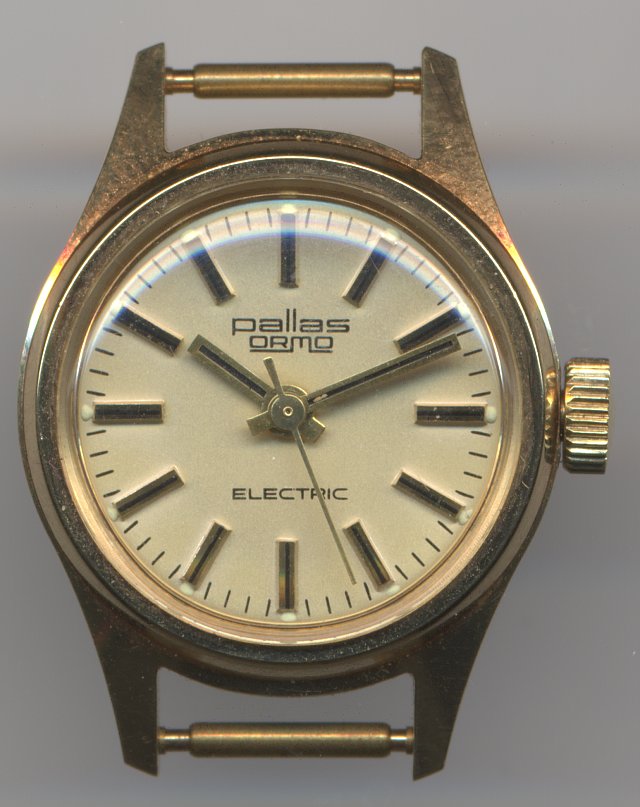

PUW 3000: Pallas Ormo Electric ladies' watch

Pallas Ormo Electric ladies' watch
