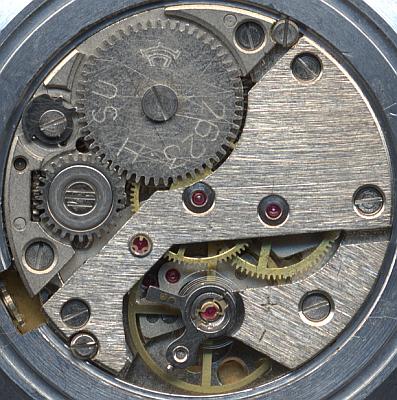

Raketa 2623.H

Technical data

**Hint:** The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.
Manufacturer:	Raketa
Caliber:	2623.H
Caliber base:	Raketa 2601.H
Size:	11 1/2'''
Number of jewels:	17
Escapement:	Pallet lever
Balance types:	Nickel anular balance
Shock protection(s):	Poljot
Balance bearing / direction hairspring:	Clockwise
Moveable stud:	yes
Adjust mechanism:	Hairspring key
Construction:	lever escape wheel, seconds wheel, third wheel center minute wheel mainspring barrel
Winding mechanism:	yoke winding system
Features:	SCD (direct center seconds) 24HA (24hr indication (pointer))
Production period:	-1999

Raketa 2601.H
Raketa 2609.HA (11 1/2''', SCD, 18000 A/h)
Raketa 2614.H (11 1/2''', SCD,QG,RDR, 18000 A/h)
Raketa 2623.H (11 1/2''', SCD,24HA)
Raketa 2627.H (11 1/2''', SCD,QG,JG,RDR,AUT, 18000 A/h)
Raketa 2628.H (11 1/2''', SCD,JG,QG,RDR, 18000 A/h)
