Description

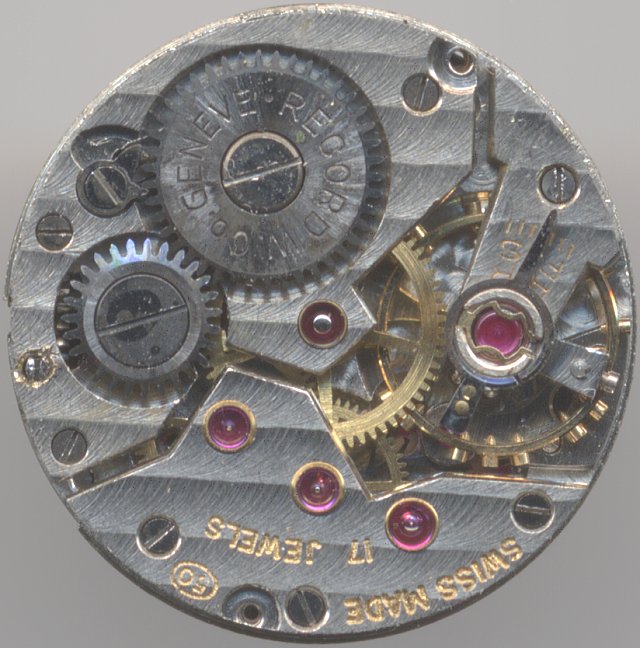

A very beautiful ladies’ movement is the caliber 50 from Record Watch, which is described here. It has got a golden Glucydur screw balance and Geneva stripes on the plates, but the most beautiful and technical noteable feature are the Chatons, which bear the large jewels.

Technical data

Manufacturer:Record
Caliber:50
Size:7 3/4'''
A/h:18000
lift angle:47°
Number of jewels:17
Escapement:Pallet lever
Balance types:Glucydur screw balance
Shock protection(s):Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Winding mechanism:yoke winding system
Features:
  • s (decentral seconds)
References:Flume: 1949 II 125
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

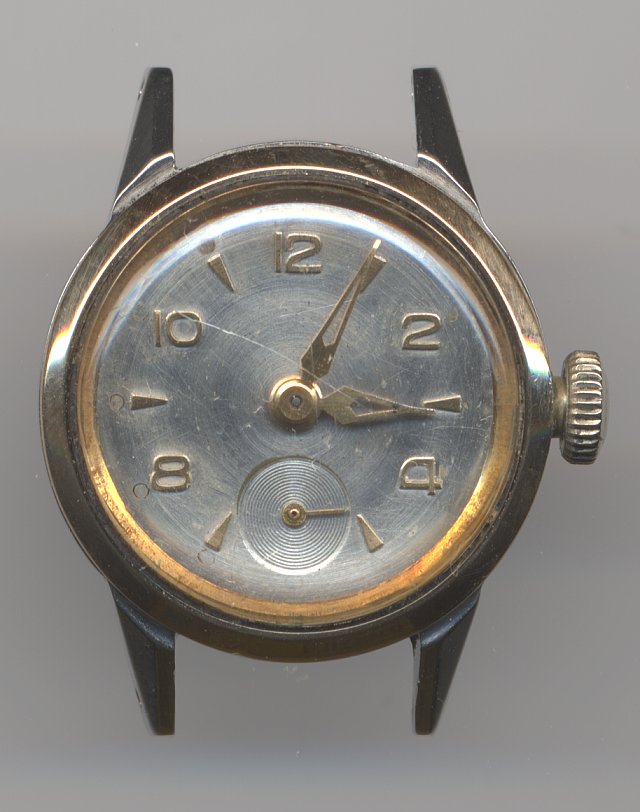

Record 50: Record ladies' watch

Record ladies' watch
