Slava 1809


Slava 1809 |

Slava 1809

Description

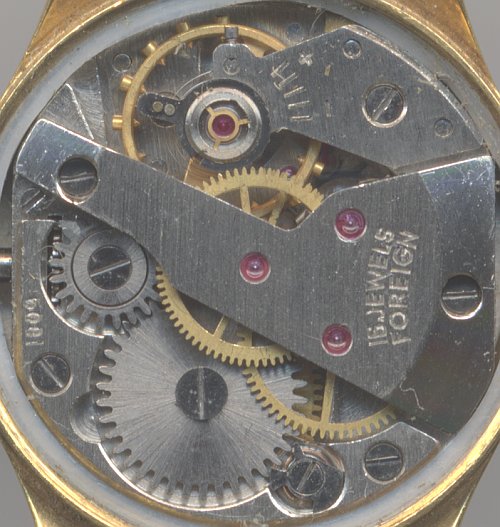

The Slava 1809 is a small movement with direct driven center second. Because of this, it uses an interesting sandwich construction. With screw balance and the typical russian shock protection it is technically and visually appealing.

I have no idea, why the movement was marked as “foreign”…

Technical data

Manufacturer:Slava
Caliber:1809
Size:7 x 8'''
Height:4,20mm
A/h:21600
Number of jewels:16
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):3 arms, russian
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Features:
  • SCD (direct center seconds)
References:Flume: K3 -
Mentioning in literature (years):1968
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

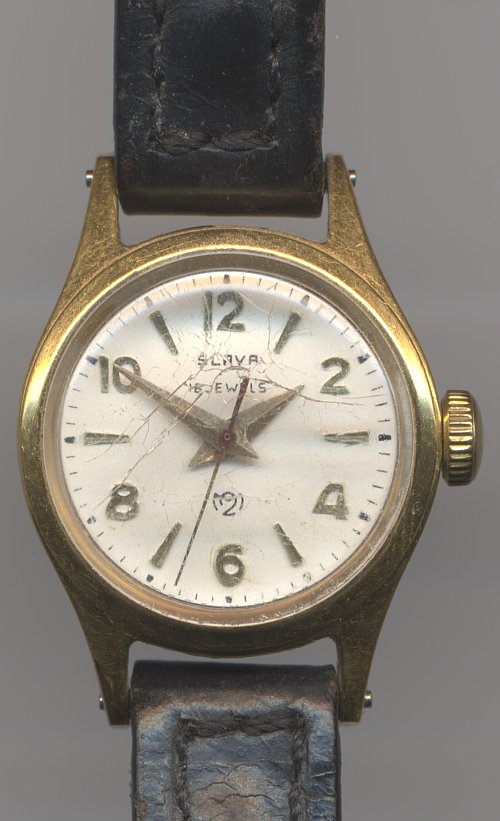

Slava 1809: Slava ladies' watch

Slava ladies' watch
