UMF 24-26


UMF 24-26 |

UMF 24-26

Description

The so called “eye mover” caliber 24-26 bases on the UMF 24-30 and adds an unusual complication: The prolonged anchor wheel carries a pair of eyes, which move on the ticking.

UMF 24-26: UMF 24-26 dial side

UMF 24-26 dial side

Technical data

Manufacturer:UMF
Caliber:24-26
Caliber base:UMF 24-30
Size:10 1/2'''
A/h:18000
lift angle:60°
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:pillar construction
Winding mechanism:rocking bar winding system
Setting lever spring:2 holes
Production period:1963 - 1990
References:Flume: (K3 -)
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

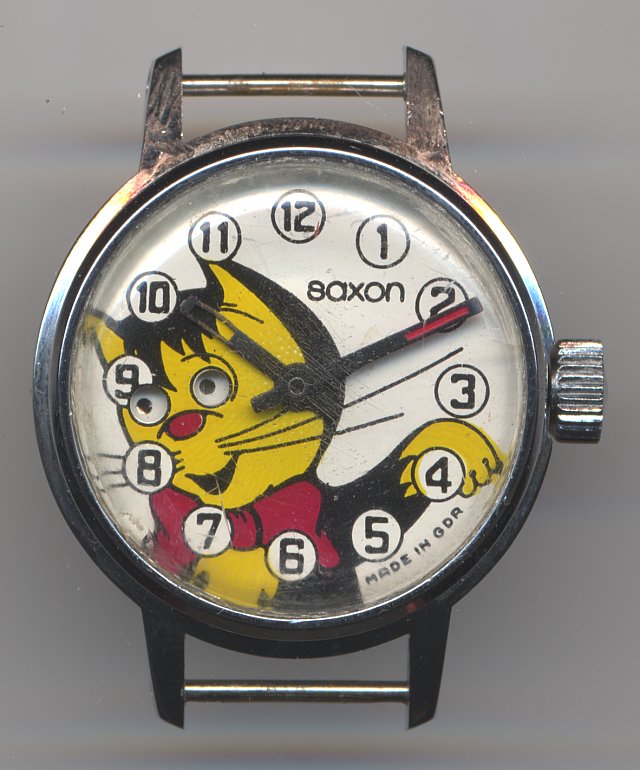

UMF 24-26: Saxon eye mover watch

Saxon eye mover watch

Caliber Family
UMF 24-30

Other movements from UMF
