Urofa 542


Urofa 542 |

Urofa 542

Description

The Urofa 542, also known as Dugena 814, was produced in the late 1930ies and was a standard ladies’ form movement. It did not yet have a shock protection for the balance.

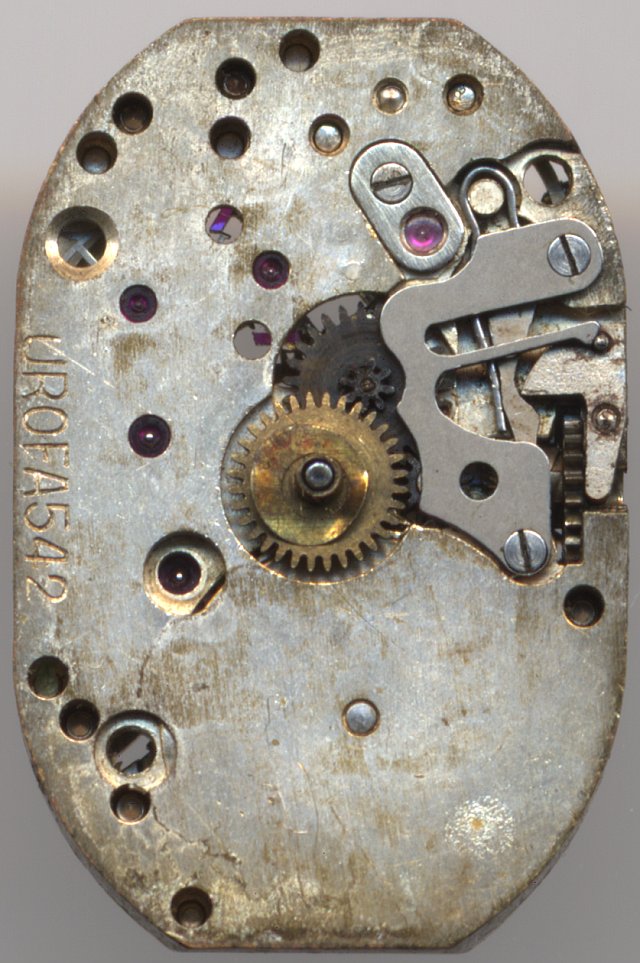

Urofa 542: Urofa 542 dial side

Urofa 542 dial side

Technical data

Manufacturer:Urofa
Caliber:542
Size:5 3/4 x 8 3/4'''
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 holes
References:Flume: 1947 120
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

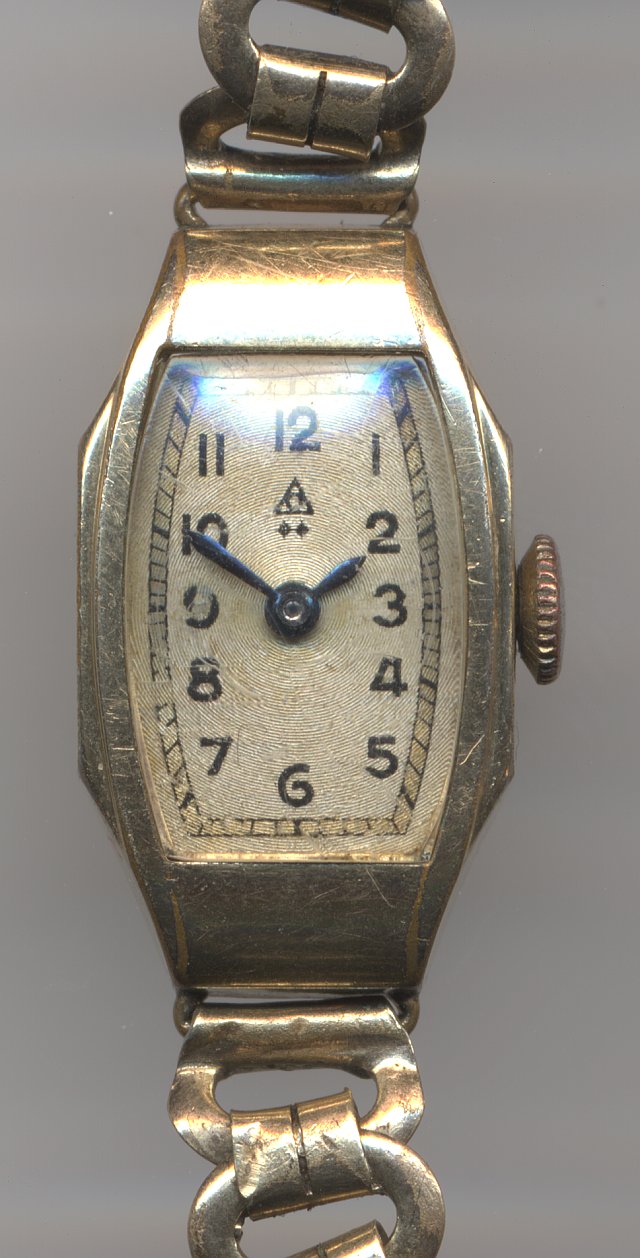

Urofa 542: Dugena ladies' watch

Dugena ladies' watch
