Villeret 10


Villeret 10 |

Villeret 10

Description

The Villeret 10 (Aurore-Villeret 10) displayed here measures 5 1/2 x 8 1/2 lignes (12.8 x 19.2 x 3.45mm), originates from Switzerland and is of a very high quality. It has got a bimetal screw balance, was regulated in three positions and is nicely decorated, especially on the dial side:

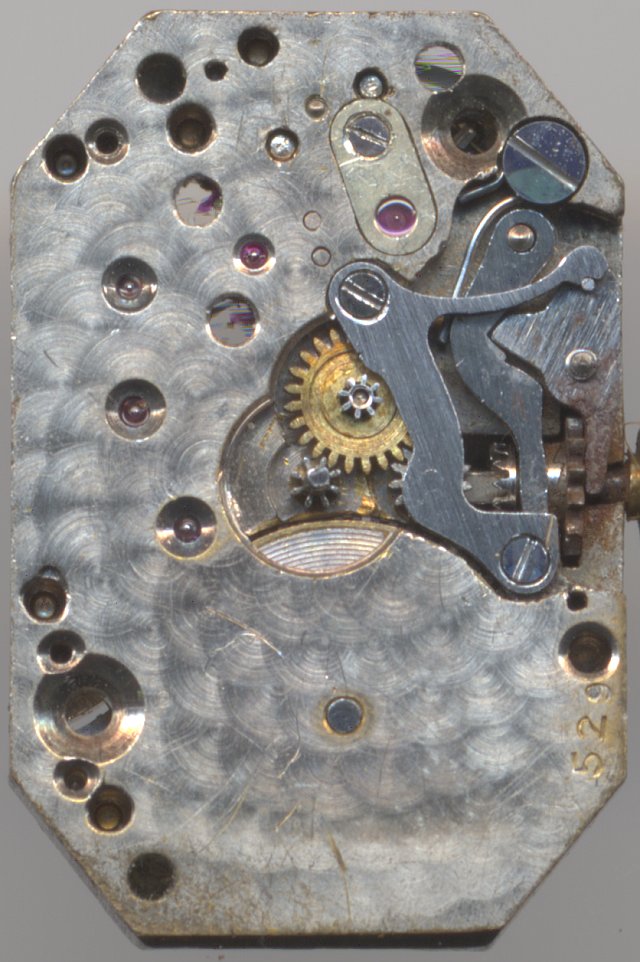

Villeret 10: Villeret 10: Dial side

Villeret 10: Dial side

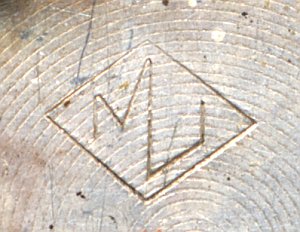

On the inner side of the dial, there’s the following signature:

Villeret 10: Logo on the inner dial side

Logo on the inner dial side

This movement was used in that unmarked swiss ladies’ watch:

Technical data

Manufacturer:Villeret
Caliber:10
Size:5 1/4 x 8 1/2'''
Height:3,75mm
A/h:18000
lift angle:52°
Escapement:Pallet lever
Shock protection(s):none
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 holes
Attachment of setting lever:screwed
References:Ebauches: 1928
Flume: 1947 123
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

Villeret 10: Anonymous swiss ladies' watch

Anonymous swiss ladies' watch
